Customized Neodymium Cylinder Magnets Ni-Cu-Ni Coating ISO14001 Approved
Product Details:
| Place of Origin: | China |
| Brand Name: | Monte Bianco |
| Certification: | ISO9001, ISO14001, TS16949 |
| Model Number: | N35-N52 (M.H.SH.UH.EH.AH) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500PCS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard Package |
| Delivery Time: | 15-30 working days after received your payment |
| Payment Terms: | T/T |
| Supply Ability: | 1000k pcs/month |
|
Detail Information |
|||
| Name: | Neodymium Cylinder Magnets | Grade: | N35-N52 (M.H.SH.UH.EH.AH) |
|---|---|---|---|
| Coating: | Ni, Zn, Gold, Silver, Epoxy, Phosphating | Magnetism Direction: | Radial Magnetizing,Axial. Customzied Specific Requirements |
| Max Working Temperature: | Max 120℃/248°F, 200Degree Neodymium Magnet | Application: | Industrial Magnet, Moto Magnet, Refrige, Mortor, Washing Mechine |
| Brand Name: | Monte-Bianco | Place Of Origin: | Hunan,China |
| Highlight: | Customized Neodymium Cylinder Magnets,ISO14001 Neodymium Cylinder Magnets,ISO9001 Cylinder Neodymium Magnets |
||
Product Description

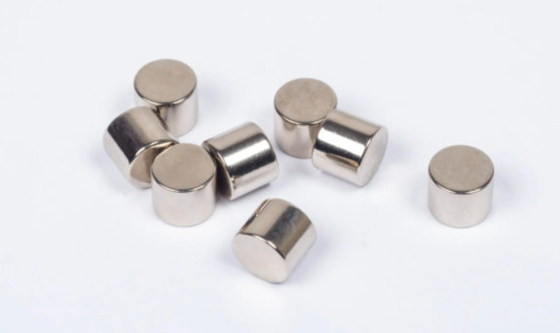

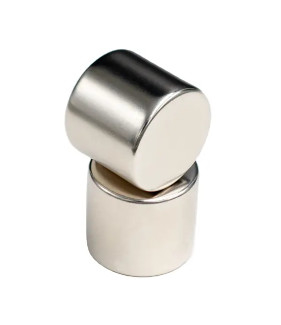

Neodymium Cylinder Magnets Ni-Cu-Ni Coating Ndfeb Magnets Customized Size
Neodymium magnet is a general term for strong magnets, with a chemical formula of Nd2Fe14B. It is an artificial permanent magnet with the strongest magnetic force to date, with a material grade of N35-N52. It can be processed into magnets of different shapes according to different requirements, such as tiles, blocks, punched holes, magnets, magnetic rods, protrusions, ladders, etc.
There are many levels of NdFeB magnets
| grade | Max Operating Temperature | grade | Max Operating Temperature |
| N30-N54 | 80℃(176℉) | N30UH-N45UH | 180℃(356℉) |
| N30M-N52M | 100℃(212℉) | N30EH-N38EH | 200℃(392℉) |
| N30H-N52H | 120℃(248℉) | N32AH | 220℃(428℉) |
| N30SH-N45SH | 150℃(302℉) |
Magnetic Characteristics of Cylindrical NdFeB Magnets
1. High coercivity and high remanence;
2. Small bulk density and light weight;
3. Low temperature coefficient (i.e. low resistivity);
4. Strong corrosion resistance;
5. No harmful metal ion pollution;
6. Good plasticity.
