N42 N45 N48 Block NdFeB Magnet Very Strong Neodymium Magnets
Product Details:
| Place of Origin: | China |
| Brand Name: | Monte Bianco |
| Certification: | ISO9001, ISO14001, TS16949 |
| Model Number: | N35-N52 (M.H.SH.UH.EH.AH) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard Package |
| Delivery Time: | 15-21 working days after received your payment |
| Payment Terms: | T/T |
| Supply Ability: | 1000k pcs/month |
|
Detail Information |
|||
| Place Of Origin: | Hunan,China | Brand Name: | Monte-Bianco/OEM |
|---|---|---|---|
| Product Name: | NdFeB Magnet Block | Grade: | N35-N52 (M.H.SH.UH.EH.AH) |
| Coating: | Zn, NiCuNi，Epoxy, | Size: | Customized |
| Max Operating Temperature: | 80-220℃（176-428℉） | Application: | Industrial Magnet, Etc |
| Processing: | Sintered Motor Magnet Permanent,Sintered | Packing: | Foam Board+carton Box Or Customized |
| Highlight: | N42 Block NdFeB Magnet,N48 Block NdFeB Magnet,Very Strong Neodymium Magnets |
||
Product Description

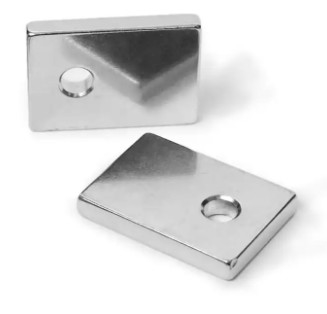

Punching of block shaped strong magnetic neodymium magnets customized
Specializations of ndfeb magnets:
Grades: N35,N38,N40,N42,N45,N48,N50,N52, (M, H, SH, EH, UH,AH )
| grade | Max Operating Temperature | grade | Max Operating Temperature |
| N30-N54 | 80℃(176℉) | N30UH-N45UH | 180℃(356℉) |
| N30M-N52M | 100℃(212℉) | N30EH-N38EH | 200℃(392℉) |
| N30H-N52H | 120℃(248℉) | N32AH | 220℃(428℉) |
| N30SH-N45SH | 150℃(302℉) |
Coatings: Nickel, Ni-Cu-Ni, Zinc, white-blue Zn, Black epoxy resin, Gold
Sizes: Produced as your requirements, usually all are available.
MOQ: According to the size.

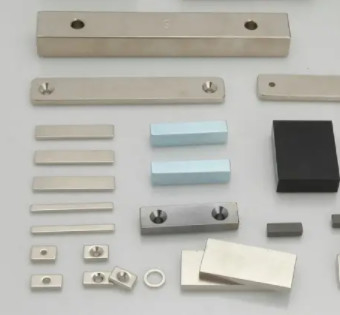

Shapes: disc,cylinder,sphere,block ,ring ,tile, arc, ect.
Multi Shape: Cylinder, Square, Ring, Disc, Arc segment and so on.
Application: Voice-coil Motor(VCM), MRI, Generator, Car, Speaker, Computer and so on.
Delivery time: Within 7-30 days after your confirmed order.
International Certificates: KAS ISO9001,SGS RoHs
Material: Neodymium, Iron and Boron, or According to clients' requirements.
Tolerance: +/-0.1mm,+/-0.05mm unless specified requirements.
Magnetized direction: Through thickness/length/diameter/
axial/isotropic/anisotropic,pair magnetized.
Maximum working temperature: 80 to 200 degrees C.
Package Condition: Standard air/sea protective package, unless specified requirements.
Advantage: NdFeB Magnet has the best magnetic energy and coercive force, very stable magnetism and work temperature, qualitied erode-resistant.
High magnetic performance (Br: 11,000 to 14,500 Gs,Hci: 11,000 to 30,000 Oe, BHmax: 35 to 50MGOe )
Monte-Bianco Magnets Co., Ltd. is located in Changsha, Hunan Province. With more than 1000 skilled employees, our company has an annual production capacity of 2000 tons. Our company is able to supply a full range of products. It has been equipped with entire production capacity of product development, mold development and manufacturing, block production, finished product processing, surface treatment and other processes under fully controlled and managed process. Our products are widely used in power tools, new energy vehicles, energy-saving motors, wind power generation, high-end audio and other fields.
