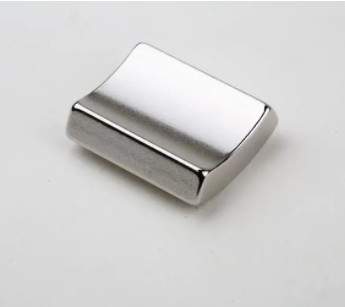

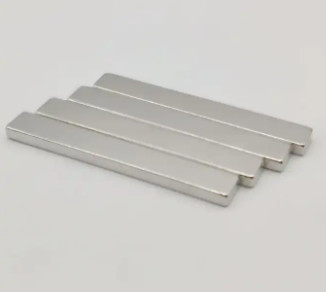

Custom Rare Earth NdFeb Magnets Permanent Super Strong N52 Neodymium Magnets
Product Details:
| Place of Origin: | China |
| Brand Name: | Monte Bianco |
| Certification: | ISO9001, ISO14001, TS16949 |
| Model Number: | N35-N52 (M.H.SH.UH.EH.AH) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 piece |
|---|---|
| Price: | Negotiatial |
| Packaging Details: | Standard Package |
| Delivery Time: | 15-21 working days after received your payment |
| Payment Terms: | T/T |
| Supply Ability: | 1000k pcs/month |
|
Detail Information |
|||
| Product Name: | Custom Rare Earth NdFeb Magnets Permanent Super Strong N52 Neodymium Magne | Grade: | N52 |
|---|---|---|---|
| Coating: | Ni, Zn, Cr, Gold, Silver, Epoxy, Phosphating | Tolerance: | 0.05mm, +/-0.1mm Or Customized |
| Size: | Customized Magnet Size | Magnetism Direction: | Radial Magnetizing,Axial. Customzied Specific Requirements |
| Material: | Permanent Neodymium Magnet | Application: | Industrial Magnet |
| Type: | Permanent,Ndfeb Magnet | Processing: | Sintered Motor Magnet Permanent,Sintered |
| Highlight: | Rare Earth NdFeb Magnets,Super Strong Neodymium Magnets,N52 Neodymium Magnets |
||
Product Description
Custom Rare Earth NdFeb Magnets Permanent Super Strong N52 Neodymium Magne
Sintered Neodymium Iron Boron Magnets or "NdFeB" magnets offer the highest energy product of any material today and are available in a wide range of shapes, sizes and grades. NdFeB magnets can be found in a variety of applications including high performance motors, brushless DC motors, magnetic separation, magnetic resonance imaging, sensors and loudspeakers.
There are many levels of NdFeB magnets
| Grade | Max Operating Temperature | Grade | Max Operating Temperature |
| N35-N48 | 80℃ (176℉) | 30SH-45SH | 150℃ (302℉) |
| N50-N52 | 60℃ (140℉) | 30UH-45UH | 180℃ (356℉) |
| 30M-50M | 100℃ (212℉) | 28EH-38EH | 200℃ (392℉) |
| 30H-48H | 120℃ (248℉) | 28AH-35AH | 230℃ (446℉) |
The following is a list and description of common plating options for custom magnets.Why do magnets need to be plated?
Oxidization (Rust)
NdFeB magnets will oxidize(rust) if left exposed. When a plating wears down or cracks, the exposed area will oxidize. An oxidized area will not result in complete degradation of the magnet, only the oxidized area will lose its strength. However the magnet will lose some structural integrity and become more susceptible to breakage.
Durability
Depending on shape, permanent magnet substrate is brittle. A multilayered metal plating like nickel or zinc improves the magnets resistance to chipping and wear, particularly around corners.
Harsh Environments
Platings vary in their tolerance of different harsh chemicals and abrasion. Salt and humidity in regions near the ocean are
commonly overlooked when selecting a plating. Be sure to consider the magnets environment when selecting a plating.
The most common type of plating for neodymium magnets Nickel (Ni-Cu-Ni) Intended for indoor use. It has proven to be very resilient when subjected to normal wear and tear. However it will corrode outdoors in prolonged exposure to salt water, salty air,or harsh chemicals.
Monte-Bianco Magnets Co., Ltd. is located in Changsha, Hunan Province. With more than 1000 skilled employees, our company has an annual production capacity of 2000 tons. Our company is able to supply a full range of products. It has been equipped with entire production capacity of product development, mold development and manufacturing, block production, finished product processing, surface treatment and other processes under fully controlled and managed process. Our products are widely used in power tools, new energy vehicles, energy-saving motors, wind power generation, high-end audio and other fields.
