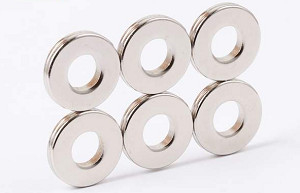

Permanent Strong Rare Earth Magnets Ndfeb Ring Neodymium Magnets
Product Details:
| Place of Origin: | China |
| Brand Name: | Monte Bianco |
| Certification: | ISO9001, ISO14001, TS16949 |
| Model Number: | N35-N52 (M.H.SH.UH.EH.AH) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 piece |
|---|---|
| Price: | Negotiatial |
| Packaging Details: | Standard Package |
| Delivery Time: | 15-30 working days after received your payment |
| Payment Terms: | T/T |
| Supply Ability: | 500k pcs/month |
|
Detail Information |
|||
| Name: | Ring Neodymium Magnets | Grade: | N35-N52 (M.H.SH.UH.EH.AH) |
|---|---|---|---|
| Coating: | Ni, Zn, Cr, Gold, Silver, Epoxy, Phosphating | Tolerance: | 0.05mm, +/-0.1mm Or Customized |
| Max Operating Temperature: | 80-220℃（176-428℉） | Charge Mixture: | Pr、Nd、B、Fe、Dy、Tb、Al、Cu、Ga、Zr、Ho、Nb、La、Ce, Etc |
| Magnetism Direction: | Axial/Radial,Axially Magnetized | Application: | Industrial Magnet, Etc |
| High Light: | Permanent Strong Rare Earth Magnets,Strong Rare Earth Magnets Ring,Ring Neodymium Magnets Ndfeb |
||
Product Description
Strong Permanent Magnetic Materials Rare Earth Ndfeb Ring Neodymium Magnets
There are many levels of NdFeB magnets
| grade | Max Operating Temperature | grade | Max Operating Temperature |
| N30-N54 | 80℃(176℉) | N30UH-N45UH | 180℃(356℉) |
| N30M-N52M | 100℃(212℉) | N30EH-N38EH | 200℃(392℉) |
| N30H-N52H | 120℃(248℉) | N32AH | 220℃(428℉) |
| N30SH-N45SH | 150℃(302℉) |
Product Uses
Used in electronic, electrical machinery. medical equipment toys packaging. metal machinery, aerospace and othfields, the more common ermanent magnet motor, speaker, magnetic separator, computer disk drive, householdappliances, digital cameras, mobile phones, stationery, handicrafts, magnetic resonance imaging equipment etc.
We accept customized services:
1. Shape and Dimension Requirements
2. Material and coating requirements
3. Processing according to design drawings
4. Requirements for Magnetization Direction
5. Magnet Grade Requirements
6. Surface treatment requirements (plating requirements)
