Epoxy Coating Arc NdFeB Magnets Customized For Electric Motors
Product Details:
| Place of Origin: | China |
| Brand Name: | Monte Bianco |
| Certification: | ISO9001, ISO14001, TS16949 |
| Model Number: | N35-N52 (M.H.SH.UH.EH.AH) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500PCS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard Package |
| Delivery Time: | 15-30 working days after received your payment |
| Payment Terms: | T/T |
| Supply Ability: | 1000k pcs/month |
|
Detail Information |
|||
| Name: | Neodymium Arc Magnets | Grade: | N35-N52 (M.H.SH.UH.EH.AH) |
|---|---|---|---|
| Coating: | Zn, NiCuNi，Epoxy | Size: | Customized |
| Max Operating Temperature: | 80-220℃（176-428℉） | Tolerance: | 0.05mm, +/-0.1mm Or Customized |
| Lead Time: | 10-25 Days | Packing: | Foam Board+carton Box Or Customized |
| High Light: | Epoxy Coating Arc NdFeB Magnets,Arc NdFeB Magnets Customized,Electric Motor Arc Magnets |
||
Product Description

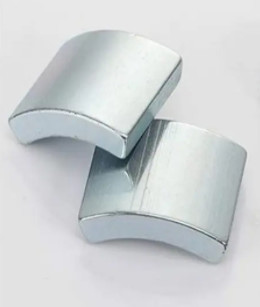

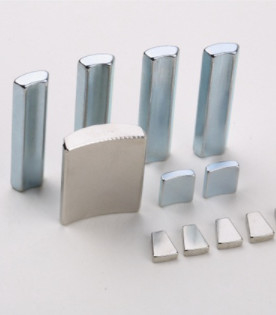

Arc-shaped NdFeB Magnets Zn Epoxy Coating Customized Neodymium Magnet
Arc NdFeB magnets are a type of powerful magnet with a curved or arc shape that is used in various industrial applications. These magnets are made from a mixture of neodymium, iron, and boron and are known for their strong magnetic field, high energy density, and excellent resistance to demagnetization.
There are many levels of NdFeB magnets
| grade | Max Operating Temperature | grade | Max Operating Temperature |
| N30-N54 | 80℃(176℉) | N30UH-N45UH | 180℃(356℉) |
| N30M-N52M | 100℃(212℉) | N30EH-N38EH | 200℃(392℉) |
| N30H-N52H | 120℃(248℉) | N32AH | 220℃(428℉) |
| N30SH-N45SH | 150℃(302℉) |
Arc NdFeB magnets offer a high level of magnetic strength and are known to possess one of the strongest magnetic fields of any magnet available.Arc NdFeB magnets are resistant to demagnetization, which means they retain their magnetism for longer periods of time compared to other types of magnets. This makes them ideal for use in high-temperature applications such as motors, generators, and other electronic devices that generate a lot of heat.
