Powerful Arc Ndfeb Magnets N30-N54 Motor Neodymium Magnet
Product Details:
| Place of Origin: | China |
| Brand Name: | Monte Bianco |
| Certification: | ISO9001, ISO14001, TS16949 |
| Model Number: | N35-N52 (M.H.SH.UH.EH.AH) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500PCS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard Package |
| Delivery Time: | 15-30 working days after received your payment |
| Payment Terms: | T/T |
| Supply Ability: | 1000k pcs/month |
|
Detail Information |
|||
| Product Name: | Motor Neodymium Magnet | Grade: | N35-N52 (M.H.SH.UH.EH.AH) |
|---|---|---|---|
| Coating: | Ni Cu Ni, Zn, Cr, Gold, Silver, Epoxy, Phosphating | Size: | Customized |
| Max Operating Temperature: | 80-220℃（176-428℉） | Lead Time: | 10-25 Days |
| Application: | Industrial Magnet, Etc | Place Of Origin: | Hunan,China |
| High Light: | Powerful Arc Ndfeb Magnets,Arc Ndfeb Magnets N30,Motor Neodymium Magnet |
||
Product Description

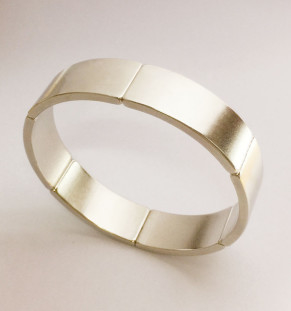

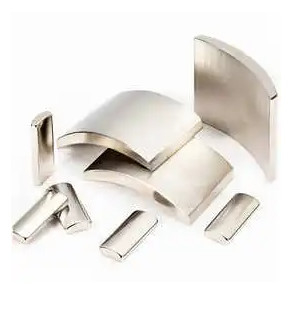

Arc Ndfeb Magnets Neodymium Motor Magnet Customized
Arc NdFeB magnets are a type of powerful magnet with a curved or arc shape that is used in various industrial applications. These magnets are made from a mixture of neodymium, iron, and boron and are known for their strong magnetic field, high energy density, and excellent resistance to demagnetization.
In order to give you an accurate quote, you need to provide the following details about the magnet:
1. Dimensions - (Please specify all dimensions in millimeters or inches).
Arc magnet: outer diameter x inner diameter x width x thickness
If you have magnets with special shapes, please provide us with sketches or drawings.
2. Grade requirements
| grade | Max Operating Temperature | grade | Max Operating Temperature |
| N30-N54 | 80℃(176℉) | N30UH-N45UH | 180℃(356℉) |
| N30M-N52M | 100℃(212℉) | N30EH-N38EH | 200℃(392℉) |
| N30H-N52H | 120℃(248℉) | N32AH | 220℃(428℉) |
| N30SH-N45SH | 150℃(302℉) |
3. Coating requirements
Available Coating of Sintered NdFeB Magnet:Nickel,Environmentlally-Friendly Zinc,Black Epoxy,Gold,Phosphated.
4. Magnetization direction
5. Working temperature
6. Quantity required
