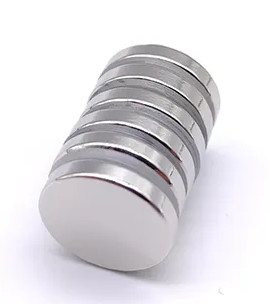

Rare Earth Medical NdFeB Disc Magnet Neodymium Round Base Magnet
Product Details:
| Place of Origin: | China |
| Brand Name: | Monte Bianco |
| Certification: | ISO9001, ISO14001, TS16949 |
| Model Number: | N35-N52 (M.H.SH.UH.EH.AH) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 piece |
|---|---|
| Price: | Negotiatial |
| Packaging Details: | Standard Package |
| Delivery Time: | 15-30 working days after received your payment |
| Payment Terms: | T/T |
| Supply Ability: | 500k pcs/month |
|
Detail Information |
|||
| Name: | Customized Neodymium Magnets | Grade: | N35-N52 (M.H.SH.UH.EH.AH) |
|---|---|---|---|
| Coating: | Ni, Zn, Cr, Gold, Silver, Epoxy, Phosphating | Size: | Customized Magnet Size |
| Tolerance: | 0.05mm ~ 0.1mm | Magnetism Direction: | Radial Magnetizing,Axial. Customzied Specific Requirements |
| Lead Time: | 10-25 Days | Brand Name: | Monte-Bianco |
| Highlight: | Medical NdFeB Disc Magnet,Rare Earth NdFeB Disc Magnet,NdFeB Rare Earth Magnets |
||
Product Description
Industrial Disc Ndfeb Magnets Customized Size Neodymium Magnet
Neodymium ring magnets are strong rare earth magnets that are circular in shape and have a hollow center. Neodymium (also known as "Neo", "NdFeb", or "NIB") ring magnets are the most powerful magnets on the market today, with far more magnetic properties than other permanent magnet materials. Due to its high magnetic strength, neodymium ring magnets have replaced other magnetic materials to make the design smaller and achieve the same effect.
There are many levels of NdFeB magnets
| grade | Max Operating Temperature | grade | Max Operating Temperature |
| N30-N54 | 80℃(176℉) | N30UH-N45UH | 180℃(356℉) |
| N30M-N52M | 100℃(212℉) | N30EH-N38EH | 200℃(392℉) |
| N30H-N52H | 120℃(248℉) | N32AH | 220℃(428℉) |
| N30SH-N45SH | 150℃(302℉) |
1. Neodymium circular ring magnets of various sizes and shapes
We have licensed neodymium ring magnets in various lengths, OD/ID diameters, finishes, and quality grades. The surface treatment options for NdFeB ring magnets are uncoated, three-layer (Ni Cu Ni) nickel coating, or aluminum IVD (ion vapor deposition) coating for optimal corrosion resistance.
2. Manufacturing method
Our neodymium disk is sintered to obtain optimal magnetic strength and axial magnetization (the magnetic direction is along the axis of the magnet from the north to the south). Common surface treatment options include uncoated, nickel (Ni Cu Ni), and gold (Ni Cu Ni Au) coatings.
3. Measurement tolerance
The standard tolerance for diameter and thickness dimensions is+/- 0.005 ".
4. Application of neodymium magnetic ring
NdFeB rod and cylindrical magnets are commonly used in power generation equipment, high-performance motors, consumer electronics, magnetic sensors, high-end audio equipment, surgical instruments, and high-strength separators in the industrial, medical, aerospace, automotive, and commercial industries, as well as for consumer use.
