Ni Coating Ring NdFeB Magnets For Electronic Free Sample Available
Product Details:
| Place of Origin: | China |
| Brand Name: | Monte Bianco |
| Certification: | ISO9001, ISO14001, TS16949 |
| Model Number: | N35-N52 (M.H.SH.UH.EH.AH) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 piece |
|---|---|
| Price: | Negotiatial |
| Packaging Details: | Standard Package |
| Delivery Time: | 10-30 working days after received your payment |
| Payment Terms: | T/T |
| Supply Ability: | 500k pcs/month |
|
Detail Information |
|||
| Product Name: | Ring Neodymium Magnet | Coating: | Ni, Zn, Cr, Gold, Silver, Epoxy, Phosphating |
|---|---|---|---|
| Grade: | N35-N52 (M.H.SH.UH.EH.AH) | Size: | Customized Magnet Size |
| Type: | Permanent, Industry Magnet | Sample: | Free Samples Available |
| Brand Name: | Monte-Bianco | OEM: | Yes |
| High Light: | Ni Coating Ring NdFeB Magnets,Electronic Ring NdFeB Magnets,ISO9001 Ring Shape Magnet |
||
Product Description

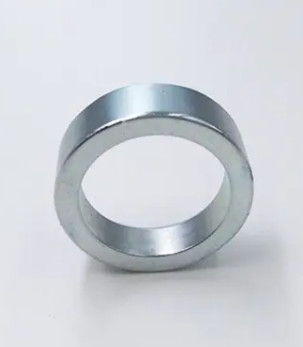

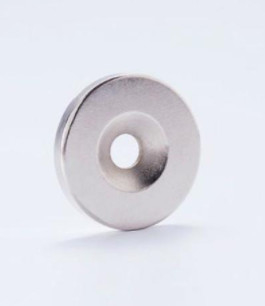

Strong Ndfeb Magnetic Materials Ring Neodymium Magnet
Neodymium magnets are one of the most widely used types of rare earth magnets. It is a permanent magnet made of alloys of neodymium, iron, and boron, forming a Nd2Fe14B tetragonal structure.
There are many levels of NdFeB magnets
| grade | Max Operating Temperature | grade | Max Operating Temperature |
| N30-N54 | 80℃(176℉) | N30UH-N45UH | 180℃(356℉) |
| N30M-N52M | 100℃(212℉) | N30EH-N38EH | 200℃(392℉) |
| N30H-N52H | 120℃(248℉) | N32AH | 220℃(428℉) |
| N30SH-N45SH | 150℃(302℉) |
The most common type of plating for neodymium magnets Nickel (Ni-Cu-Ni) Intended for indoor use. It has proven to be very resilient when subjected to normal wear and tear. However it will corrode outdoors in prolonged exposure to salt water, salty air,or harsh chemicals.
Coating
1. Nickel
2. Environmentlally-Friendly Zinc
3. Black Epoxy
4. Gold
5. Phosphated
Product Uses
Used in electronic, electrical machinery. medical equipment toys packaging. metal machinery, aerospace and othfields, the more common ermanent magnet motor, speaker, magnetic separator, computer disk drive, householdappliances, digital cameras, mobile phones, stationery, handicrafts, magnetic resonance imaging equipment etc.
