Permanent Curved Neodymium Magnets Tile Ndfeb Arc Shaped Magnets For Industrial
Product Details:
| Place of Origin: | China |
| Brand Name: | Monte Bianco |
| Certification: | ISO9001, ISO14001, TS16949 |
| Model Number: | N35-N52 (M.H.SH.UH.EH.AH) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 piece |
|---|---|
| Price: | Negotiatial |
| Packaging Details: | Standard Package |
| Delivery Time: | 10-30 working days after received your payment |
| Payment Terms: | T/T |
| Supply Ability: | 500k pcs/month |
|
Detail Information |
|||
| Name: | Arc Neodymium Magnet | Grade: | N35-N52 (M.H.SH.UH.EH.AH) |
|---|---|---|---|
| Coating: | Ni, Zn, Cr, Gold, Silver, Epoxy, Phosphating | Size: | Customized Magnet Size |
| Tolerance: | 0.05mm, +/-0.1mm Or Customized | Lead Time: | 10-25 Days |
| Processing: | Sintered | Application: | Industrial Magnet |
| Highlight: | Curved Neodymium Magnets,Industrial Arc Shaped Magnets,Ndfeb Arc Shaped Magnets |
||
Product Description

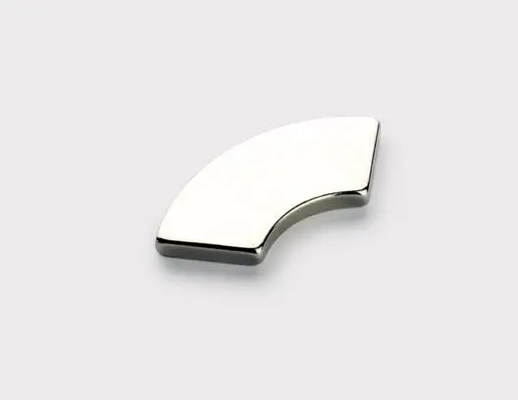

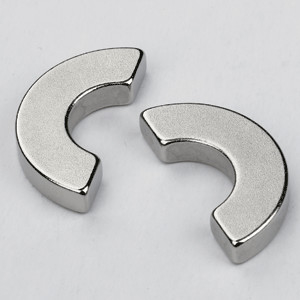

Permanent Neodymium Curved Tile Ndfeb Arc Sector Shaped Magnets
Arc NdFeB magnets are a type of powerful magnet with a curved or arc shape that is used in various industrial applications. These magnets are made from a mixture of neodymium, iron, and boron and are known for their strong magnetic field, high energy density, and excellent resistance to demagnetization.Arc NdFeB magnets are commonly used in electric motors and generators as they create a strong magnetic field, which is essential for converting electrical energy into mechanical energy.
In order to give you an accurate quote, you need to provide the following details about the magnet:
1. Dimensions - (Please specify all dimensions in millimeters or inches).
Arc magnet: outer diameter x inner diameter x width x thickness
If you have magnets with special shapes, please provide us with sketches or drawings.
2. Grade requirements
| grade | Max Operating Temperature | grade | Max Operating Temperature |
| N30-N54 | 80℃(176℉) | N30UH-N45UH | 180℃(356℉) |
| N30M-N52M | 100℃(212℉) | N30EH-N38EH | 200℃(392℉) |
| N30H-N52H | 120℃(248℉) | N32AH | 220℃(428℉) |
| N30SH-N45SH | 150℃(302℉) |
3. Coating requirements
Available Coating of Sintered NdFeB Magnet:Nickel,Environmentlally-Friendly Zinc,Black Epoxy,Gold,Phosphated.
4. Magnetization direction
5. Working temperature
6. Quantity required
