N52 Sintered NdFeB Magnets Customized Neodymium Magnets Round Magnets
Product Details:
| Place of Origin: | China |
| Brand Name: | Monte Bianco |
| Certification: | ISO9001, ISO14001, TS16949 |
| Model Number: | N35-N52 (M.H.SH.UH.EH.AH) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 piece |
|---|---|
| Price: | Negotiatial |
| Packaging Details: | Standard Package |
| Delivery Time: | 10-30 working days after received your payment |
| Payment Terms: | T/T |
| Supply Ability: | 500k pcs/month |
|
Detail Information |
|||
| Name: | Customized Neodymium Magnets | Grade: | N35-N52 (M.H.SH.UH.EH.AH) |
|---|---|---|---|
| Coating: | Ni, Zn, Cr, Gold, Silver, Epoxy, Phosphating | Size: | Customized Magnet Size |
| Tolerance: | 0.05mm, +/-0.1mm Or Customized | Material: | Permanent Neodymium Magnet |
| Max Operating Temperature: | 80-220℃（176-428℉） | Application: | Industrial Magnet |
| High Light: | N52 Sintered NdFeB Magnets,Sintered NdFeB Magnets Customized,Customized Neodymium Magnets Round Magnets |
||
Product Description

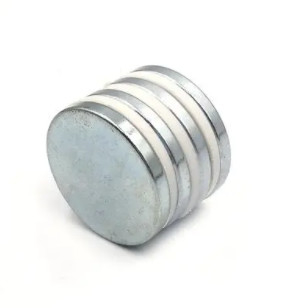

Sintered Round Cylinder Ndfeb Magnets customized Neodymium Magnets
NdFeB magnets are one of the strongest types of rare earth permanent magnets available, with a much larger (BH) max than samarium cobalt magnets. NdFeB magnets have excellent performance, so they are usually the preferred magnets for many applications in a wide range of industries.
Material classification
Sintered neodymium iron boron permanent magnet materials can be divided into six categories based on their magnetic polarization strength and coercivity: low coercivity (without letters), medium coercivity M, high coercivity H, ultra-high coercivity SH, ultra-high coercivity UH, and extremely high coercivity EH.
Grade:Each type of product is divided into several grades based on the maximum magnetic energy product size
| Grade | Max Operating Temperature | Grade | Max Operating Temperature |
| N35-N48 | 80℃ (176℉) | 30SH-45SH | 150℃ (302℉) |
| N50-N52 | 60℃ (140℉) | 30UH-45UH | 180℃ (356℉) |
| 30M-50M | 100℃ (212℉) | 28EH-38EH | 200℃ (392℉) |
| 30H-48H | 120℃ (248℉) | 28AH-35AH | 230℃ (446℉) |
application
Sintered neodymium iron boron permanent magnet materials have excellent magnetic properties and are widely used in fields such as electronics, power machinery, medical equipment, toys, packaging, hardware machinery, aerospace, etc. Common ones include permanent magnet motors, speakers, magnetic separators, computer disk drives, magnetic resonance imaging equipment instruments, etc.
