N45 Sintered NdFeB Magnets Customized Shape Permanent Neodymium Magnet
Product Details:
| Place of Origin: | China |
| Brand Name: | Monte Bianco |
| Certification: | ISO9001, ISO14001, TS16949 |
| Model Number: | N35-N52 (M.H.SH.UH.EH.AH) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard Package |
| Delivery Time: | 15-21 working days after received your payment |
| Payment Terms: | T/T |
| Supply Ability: | 1000k pcs/month |
|
Detail Information |
|||
| Place Of Origin: | Hunan,China | Brand Name: | Monte-Bianco/OEM |
|---|---|---|---|
| Name: | N45 Ndfeb Neodymium Magnet Customized Shape Sintered Permanent Neodymium Magnet | Grade: | N45 |
| Coating: | NI-CU-NI, ZN, Epoxy, Parylene,Zi | Max Operating Temperature: | 80-220℃（176-428℉） |
| Tolerance: | International Standard | Delivery Time: | 15-21 Days |
| Application: | Industrial Magnet | Packing: | Foam Board+carton Box Or Customized |
| Highlight: | N45 Sintered NdFeB Magnets,ISO9001 Sintered NdFeB Magnets,Customized Permanent Neodymium Magnet |
||
Product Description

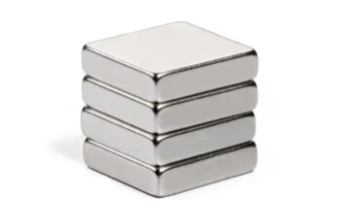

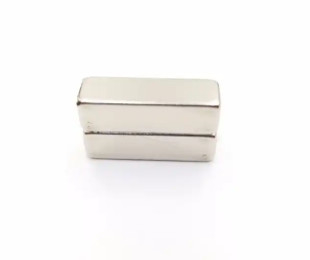

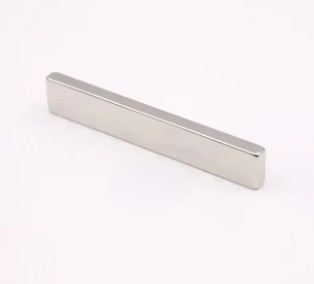

N45 Ndfeb Neodymium magnet Customized Shape Sintered Permanent Neodymium magnet
Sintered Ndfeb Magnet products Widely used in DC motors, permanent magnet generators, electronic and electrical appliances, instrumentation, sensors, mechanical equipment and other fields. Meanwhile, we can also produce various magnets with different functions according to customers' drawings & drafts.
| Magnet Dimension | Custom dimension is available | |
| Magnetized Direction | Please indicate magnetization direction when ordering | |
| Magnet Grade | We can supply all grades of Ndfeb magnets | |
| For example:N35,N42,N52, N45sh,N42uh... | ||
| If you are not sure which grade is appropriate, please feel free to contact our engineers. | ||
| Temperature Resistance | Temperature is the first factor you must consider when choosing magnets, please contact our engineers for details. | |
| Coating | Customised (Zn, Ni-Cu-Ni, Ni, Gold, Silver, Copper, Epoxy, Chrome, etc) | |
| Max. Working Temperature | Grade | Max. Operating Temperatures |
| N35-N52 | 80°C (176°F) | |
| 33M- 48M | 100°C (212°F) | |
| 33H-48H | 120°C (248°F) | |
| 30SH-45SH | 150°C (302°F) | |
| 30UH-40UH | 180°C (356°F) | |
| 28EH-38EH | 200°C (392°F) | |
| 28AH-35AH | 220°C (428°F) | |
| Notice | 1. Be careful of fragile and clamped hands. | |
| 2. Store in a dry place at room temperature! | ||
| 3. Pull out carefully. When connecting the two magnets, slowly and gently close each other. Hard rolling can cause damage and cracking of magnets. | ||
| 4. Children are not allowed to play with naked Ndfeb magnets. | ||
In order to give you an accurate quote, you need to provide the following details about the magnet:
1. Dimensions - (Please specify all dimensions in millimeters or inches).
Arc magnet: outer diameter x inner diameter x width x thickness
If you have magnets with special shapes, please provide us with sketches or drawings.
2. Grade requirements
3. Coating requirements
4. Magnetization direction
5. Working temperature
6. Quantity required
Monte-Bianco Magnets Co., Ltd. is located in Changsha, Hunan Province. With more than 1000 skilled employees, our company has an annual production capacity of 2000 tons. Our company is able to supply a full range of products. It has been equipped with entire production capacity of product development, mold development and manufacturing, block production, finished product processing, surface treatment and other processes under fully controlled and managed process. Our products are widely used in power tools, new energy vehicles, energy-saving motors, wind power generation, high-end audio and other fields.
