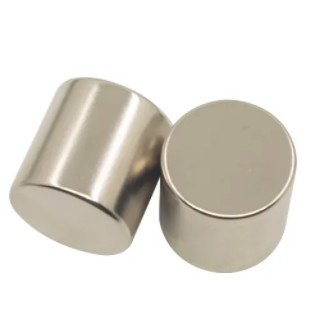

Custom Neodymium Cylinder Magnets Ni Cu Ni Coating NdFeB Magnets
Product Details:
| Place of Origin: | China |
| Brand Name: | Monte Bianco |
| Certification: | ISO9001, ISO14001, TS16949 |
| Model Number: | N35-N52 (M.H.SH.UH.EH.AH) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500PCS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard Package |
| Delivery Time: | 15-30 working days after received your payment |
| Payment Terms: | T/T |
| Supply Ability: | 1000k pcs/month |
|
Detail Information |
|||
| Name: | Round Cylinder Magnets | Grade: | N35-N52 (M.H.SH.UH.EH.AH) |
|---|---|---|---|
| Coating: | Ni Cu Ni, Zn, Cr, Gold, Silver, Epoxy, Phosphating | Magnetism Direction: | Radial Magnetizing,Axial. Customzied Specific Requirements |
| Max Operating Temperature: | 80-220℃（176-428℉） | Type: | Permanent, Round Block, Ring, NdFeB Magnet |
| Tolerance: | International Standard | Packing: | Foam Board+carton Box Or Customized |
| Highlight: | Custom Neodymium Cylinder Magnets,Ni Coating Neodymium Cylinder Magnets,Custom Neodymium Magnet Coating |
||
Product Description
Custom Cylinder Neodymium Magnets Ni Cu Ni Coating NdFeB Magnets
Sintered NdFeB magnets have high magnetic permeability and can provide a powerful magnetic field for manufacturing various electronic devices. They are particularly suitable for mass production of various shapes and sizes. Accurate dimensional control can be achieved during the machining process. With these advantages, neodymium magnets have been widely used in many commercial fields such as high-performance motors, brushless DC motors, magnetic separators, magnetic resonance imaging (MRI), sensors, speakers, consumer electronics, and green energy.
There are many levels of NdFeB magnets
| grade | Max Operating Temperature | grade | Max Operating Temperature |
| N30-N54 | 80℃(176℉) | N30UH-N45UH | 180℃(356℉) |
| N30M-N52M | 100℃(212℉) | N30EH-N38EH | 200℃(392℉) |
| N30H-N52H | 120℃(248℉) | N32AH | 220℃(428℉) |
| N30SH-N45SH | 150℃(302℉) |
