Industrial Sintered NdFeB Magnets N30M-N52M Powerful Rare Earth Magnets
Product Details:
| Place of Origin: | China |
| Brand Name: | Monte Bianco |
| Certification: | ISO9001, ISO14001, TS16949 |
| Model Number: | N35-N52 (M.H.SH.UH.EH.AH) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 piece |
|---|---|
| Price: | Negotiatial |
| Packaging Details: | Standard Package |
| Delivery Time: | 15-30 working days after received your payment |
| Payment Terms: | T/T |
| Supply Ability: | 500k pcs/month |
|
Detail Information |
|||
| Name: | Industrial Sintered NdFeB Magnets N30M-N52M Powerful Rare Earth Magnets | Grade: | N35-N52 (M.H.SH.UH.EH.AH) |
|---|---|---|---|
| Surface Coating: | Ni, Zn, Cr, Gold, Silver, Epoxy, Phosphating | Tolerance: | 0.05mm ~ 0.1mm |
| Magnetism Direction: | Axial/Radial,Axially Magnetized | Composite: | NdFeB Magnet,Neodymium Magnet,Rare Earth Magnet,Ferrite Magnet,Rare Earth Nd-Fe-B |
| Size: | Customized Magnet Size | Brand Name: | Monte-Bianco |
| High Light: | Industrial Sintered NdFeB Magnets,Sintered NdFeB Magnets N30M,N52M Powerful Rare Earth Magnets |
||
Product Description

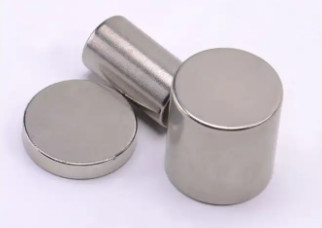

Super Strong Sintered Ndfeb Industrial Magnet Rare Earth Neodymium Magnets
There are many grades of NdFeB magnets, and the performance parameters vary among different grades. Each grade of NdFeB has its own application field.
There are many levels of NdFeB magnets
| grade | Max Operating Temperature | grade | Max Operating Temperature |
| N30-N54 | 80℃(176℉) | N30UH-N45UH | 180℃(356℉) |
| N30M-N52M | 100℃(212℉) | N30EH-N38EH | 200℃(392℉) |
| N30H-N52H | 120℃(248℉) | N32AH | 220℃(428℉) |
| N30SH-N45SH | 150℃(302℉) |
The following is an introduction to the main application fields of various grades of neodymium iron boron:
N. The M brand is mainly used in fields such as medical magnets, electroacoustics, home appliances, voice coil motors, and electronic products.
The H brand is mainly used in the fields of motors and sensors.
SH brand is often used in places such as wind turbines and industrial motors that require high magnetic properties due to its high intrinsic coercivity.
The UH brand is commonly used for automotive motors and air conditioning compressors.
The EH brand with the best magnetic performance is widely used in fields such as hybrid vehicles, electromagnetic valves, and sensors.
We accept customized services:
1. Shape and Dimension Requirements
2. Material and coating requirements
3. Processing according to design drawings
4. Requirements for Magnetization Direction
5. Magnet Grade Requirements
6. Surface treatment requirements (plating requirements)
