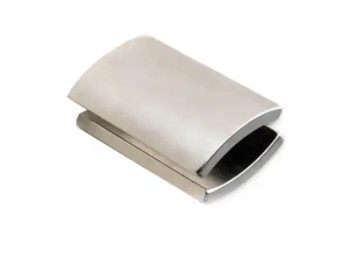

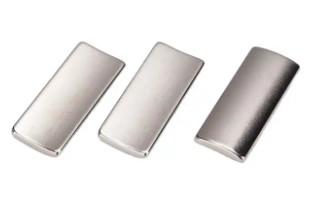

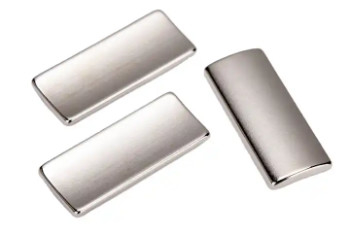

Customized Neodymium Motor Magnet Arc Shape NdFeB Magnets Epoxy Coating
Product Details:
| Place of Origin: | China |
| Brand Name: | Monte Bianco |
| Certification: | ISO9001, ISO14001, TS16949 |
| Model Number: | N35-N52 (M.H.SH.UH.EH.AH) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 piece |
|---|---|
| Price: | Negotiatial |
| Packaging Details: | Standard Package |
| Delivery Time: | 15-21 working days after received your payment |
| Payment Terms: | T/T |
| Supply Ability: | 1000k pcs/month |
|
Detail Information |
|||
| Name: | Neodymium Motor Magnet | Grade: | N35-N52 (M.H.SH.UH.EH.AH) |
|---|---|---|---|
| Coating: | Ni, Zn, Cr, Gold, Silver, Epoxy, Phosphating | Type: | Permanent, Ndfeb Magnet |
| Lead Time: | 15-21 Days | Tolerance: | 0.05mm, +/-0.1mm Or Customized |
| Brand Name: | Monte-Bianco | Place Of Origin: | Hunan,China |
| High Light: | Customized Neodymium Motor Magnet,Arc Neodymium Motor Magnet,Epoxy Coating Neodymium Arc Magnet |
||
Product Description
Neodymium Motor Magnet Customization of Arc Shape NdFeB Magnets
Sintered NdFeB permanent magnet material is an energy storage device with high energy density, which can efficiently achieve the mutual conversion of energy and information. It is a fundamental functional material urgently needed by strategic emerging industries such as wind power generation, new energy vehicles, energy-saving motors, and hybrid vehicles.
There are many levels of NdFeB magnets
| Grade | Max Operating Temperature | Grade | Max Operating Temperature |
| N35-N48 | 80℃ (176℉) | 30SH-45SH | 150℃ (302℉) |
| N50-N52 | 60℃ (140℉) | 30UH-45UH | 180℃ (356℉) |
| 30M-50M | 100℃ (212℉) | 28EH-38EH | 200℃ (392℉) |
| 30H-48H | 120℃ (248℉) | 28AH-35AH | 230℃ (446℉) |
Introduction of Manufacturing Process
Sintered Neodymium magnet is prepared by the raw materials being melted under vacuum or inert gas atmosphere in an induction melting furnace and processed in the strip caster and thus cooled to form alloy strip. The strips are crushed and pulverized to form a fine powder ranging from 3 to 7 microns in particle size. The powder is subsequently compacted in an aligning field and sintered into dense bodies. The blanks are then machined to the specific shapes, surface treated and magnetized.
Coating
Has a variety of conventional Ni-Cu-Ni, Zn, black epoxy coating. after plating, has a good rust, corrosion resistance.Corrosion resistance: black epoxy> Ni-Cu-Ni > Zn.
Monte-Bianco Magnets Co., Ltd. is located in Changsha, Hunan Province. With more than 1000 skilled employees, our company has an annual production capacity of 2000 tons. Our company is able to supply a full range of products. It has been equipped with entire production capacity of product development, mold development and manufacturing, block production, finished product processing, surface treatment and other processes under fully controlled and managed process. Our products are widely used in power tools, new energy vehicles, energy-saving motors, wind power generation, high-end audio and other fields.
