Ndfeb N52 Rare Earth Arc Magnets , Motor Permanent Magnet OEM
Product Details:
| Place of Origin: | China |
| Brand Name: | Monte Bianco |
| Certification: | ISO9001, ISO14001, TS16949 |
| Model Number: | N35-N52 (M.H.SH.UH.EH.AH) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 piece |
|---|---|
| Price: | Negotiatial |
| Packaging Details: | Standard Package |
| Delivery Time: | 15-30 working days after received your payment |
| Payment Terms: | T/T |
| Supply Ability: | 500k pcs/month |
|
Detail Information |
|||
| Product Name: | Rare Earth Arc Magnets | Grade: | N52 |
|---|---|---|---|
| Coating: | Ni, Zn, Cr, Gold, Silver, Epoxy, Phosphating | Size: | Customized Magnet Size |
| Lead Time: | 10-25 Days | Tolerance: | 0.05mm, +/-0.1mm Or Customized |
| Processing: | Sintered Motor Magnet Permanent,Sintered | Application: | Industrial Magnet |
| Brand Name: | Monte-Bianco | OEM: | Yes |
| Highlight: | N52 Rare Earth Arc Magnets,Ndfeb Rare Earth Arc Magnets,Motor Permanent Magnet OEM |
||
Product Description

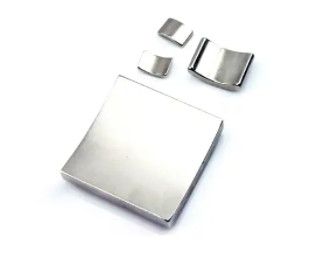

Customized Ndfeb N52 Rare Earth Arc Neodymium Magnet Motor Permanent Magnets
When designing motors, the shape and size of permanent magnets have a very important impact on the overall performance of the motor. Therefore, choosing the appropriate shape and size of motor magnets is of great significance. Usually, the shapes of motor magnets we use are mostly arc-shaped, tile shaped, square shaped, circular shaped, etc.
Arc motor magnets (tile magnets, bread magnets, etc.)
Arc-shaped magnets can form radial rings. They are still the most common motor magnet shapes, especially for DC motors and magnetic rotors. The curved magnet will bring the magnet closer to the stator. So it can reduce the air gap and increase the flux between them.
There are many levels of NdFeB magnets
| Grade | Max Operating Temperature | Grade | Max Operating Temperature |
| N35-N48 | 80℃ (176℉) | 30SH-45SH | 150℃ (302℉) |
| N50-N52 | 60℃ (140℉) | 30UH-45UH | 180℃ (356℉) |
| 30M-50M | 100℃ (212℉) | 28EH-38EH | 200℃ (392℉) |
| 30H-48H | 120℃ (248℉) | 28AH-35AH | 230℃ (446℉) |
Neodymium magnets Widely used in spindle motors, stepper motors, synchronous motors, DC motors, brushless motors and other micro-motors. Widely used in electronic information, industrial equipment, automotive, medical equipment, aviation model, robots, household appliances and other fields. Computer optical drive, car DVD, car air conditioner motor, starter motor, buzzer motor, sensor, smart home,drone, robot, fan motor and other fields.
