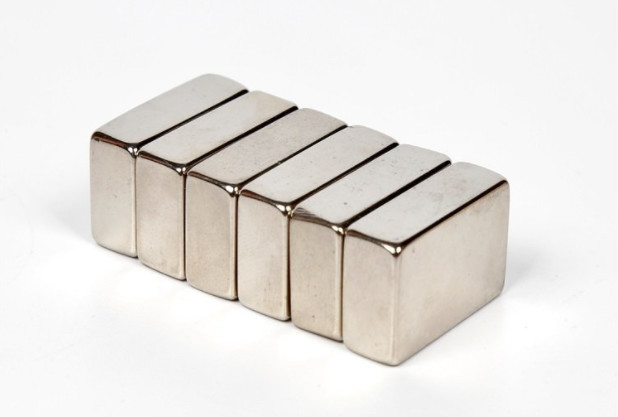

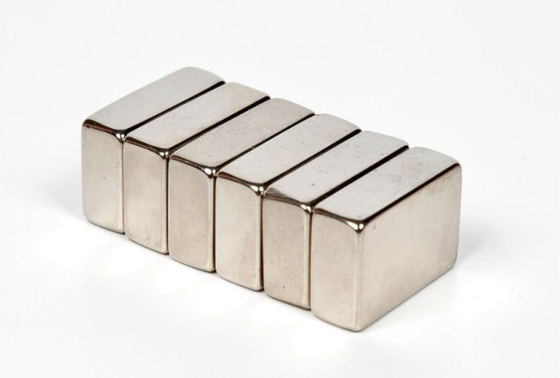

N35-N48 Sintered NdFeB Magnets Custom Neodymium Rare Earth Magnets
Product Details:
| Place of Origin: | China |
| Brand Name: | Monte Bianco |
| Certification: | ISO 9001:2015，ISO 14001:2015 |
| Model Number: | N35-N52 (M.H.SH.UH.EH.AH) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 piece |
|---|---|
| Price: | Negotiatial |
| Packaging Details: | Standard Package |
| Delivery Time: | 15-30 working days after received your payment |
| Payment Terms: | T/T |
| Supply Ability: | 500k pcs/month |
|
Detail Information |
|||
| Product Name: | N35 N52 Magnets | Grade: | N35-N52 (M.H.SH.UH.EH.AH) |
|---|---|---|---|
| Color: | Bright Silver, Gold, Grey, Customized | Tolerance: | 0.05mm, +/-0.1mm Or Customized |
| Place Of Origin: | Hunan,China | Type: | Permanent,Ndfeb Magnet |
| Brand Name: | Monte-Bianco | ||
| High Light: | N35 Sintered NdFeB Magnets,N48 Sintered NdFeB Magnets,Neodymium Rare Earth Magnets |
||
Product Description
Rare Earth Sintered NdFeB Magnets Custom Size Strong Neodymium Magnets
There are many grades of NdFeB magnets, and the performance parameters vary among different grades. Each grade of neodymium, iron, and boron has its own application field. For systems such as box and foreskin A, the N grade is generally used, and most of them are N35 magnets or lower. The neodymium magnets inside the engine are generally required to withstand high temperatures of over 100 degrees Celsius, so there are more options for choosing H and SH grades.
There are many levels of NdFeB magnets
| Grade: | Max Operating Temperature | Grade: | Max Operating Temperature |
| N35-N48 | 80℃ (176℉) | 30SH-45SH | 150℃ (302℉) |
| N50-N52 | 60℃ (140℉) | 30UH-45UH | 180℃ (356℉) |
| 30M-50M | 100℃ (212℉) | 28EH-38EH | 200℃ (392℉) |
| 30H-48H | 120℃ (248℉) | 28AH-35AH | 230℃ (446℉) |
Application
Life consumption: clothing, bag, leather case, cup, glove, jewelry, pillow, fish tank, photo frame, watch.
Electronic product: keyboard, display, smart bracelet, computer, mobile phone, sensor, GPS locator,Bluetooth, camera, audio, LED.
Home-based: Lock, table, chair, cupboard, bed, curtain, window, knife, lighting, hook, ceiling.
Mechanical equipment & automation: motor, unmanned aerial vehicles, elevators, security monitoring, dishwashers, magnetic cranes, magnetic filter.
