N52 NdFeB Permanent Magnets Rare Earth Block Neodymium Magnet
Product Details:
| Place of Origin: | China |
| Brand Name: | Monte Bianco |
| Certification: | ISO9001, ISO14001, TS16949 |
| Model Number: | N35-N52 (M.H.SH.UH.EH.AH) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard Package |
| Delivery Time: | 15-21 working days after received your payment |
| Payment Terms: | T/T |
| Supply Ability: | 1000k pcs/month |
|
Detail Information |
|||
| Product Name: | NdFeB Permanent Magnet Rare Earth | Grade: | N35-N52 (M.H.SH.UH.EH.AH) |
|---|---|---|---|
| Coating: | Ni, Zn, Cr, Gold, Silver, Epoxy, Phosphating | Shape: | Block |
| Tolerance: | 0.05mm, +/-0.1mm Or Customized | Application: | Motors, Loudspeakers, Different Types Of Sensors, Etc |
| Brand Name: | Monte-Bianco/OEM | Packing: | Foam Board+carton Box Or Customized |
| Highlight: | N52 NdFeB Permanent Magnets,NdFeB Permanent Magnets Rare Earth,Block Neodymium Magnet |
||
Product Description

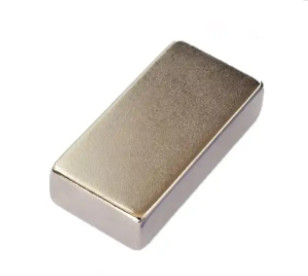

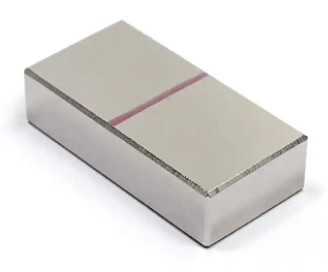

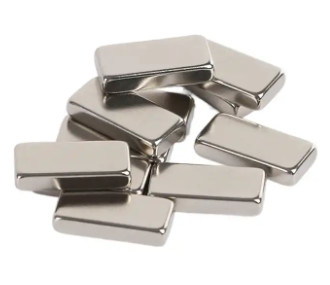

N52 NdFeB Permanent Magnets Rare Earth Block Neodymium Magnet
Neodymium iron boron permanent magnet material is a permanent magnet material based on the intermetallic compound Nd2Fe14B. Compared to cast Al Ni Co permanent magnet materials and ferrite permanent magnet materials, neodymium iron boron has extremely high magnetic energy product and coercive force, which can absorb a weight equivalent to 640 times its own weight. The advantages of high energy density have made neodymium iron boron permanent magnet materials widely used in modern industry and electronic technology.
| Magnet Dimension | Custom dimension is available | |
| Magnetized Direction | Please indicate magnetization direction when ordering | |
| Magnet Grade | We can supply all grades of Ndfeb magnets | |
| For example:N35,N42,N52, N45sh,N42uh... | ||
| If you are not sure which grade is appropriate, please feel free to contact our engineers. | ||
| Temperature Resistance | Temperature is the first factor you must consider when choosing magnets, please contact our engineers for details. | |
| Coating | Customised (Zn, Ni-Cu-Ni, Ni, Gold, Silver, Copper, Epoxy, Chrome, etc) | |
| Max. Working Temperature | Grade | Max. Operating Temperatures |
| N35-N52 | 80°C (176°F) | |
| 33M- 48M | 100°C (212°F) | |
| 33H-48H | 120°C (248°F) | |
| 30SH-45SH | 150°C (302°F) | |
| 30UH-40UH | 180°C (356°F) | |
| 28EH-38EH | 200°C (392°F) | |
| 28AH-35AH | 220°C (428°F) | |
| Notice | 1. Be careful of fragile and clamped hands. | |
| 2. Store in a dry place at room temperature! | ||
| 3. Pull out carefully. When connecting the two magnets, slowly and gently close each other. Hard rolling can cause damage and cracking of magnets. | ||
|
4. Children are not allowed to play with naked Ndfeb magnets. |
||
Custom Neodymium Magnets – We can custom neodymium magnets to your exact specifications, just send us a special request and we'll help you determine the most cost effective solution for your project.
Monte-Bianco Magnets Co., Ltd. is located in Changsha, Hunan Province. With more than 1000 skilled employees, our company has an annual production capacity of 2000 tons. Our company is able to supply a full range of products. It has been equipped with entire production capacity of product development, mold development and manufacturing, block production, finished product processing, surface treatment and other processes under fully controlled and managed process. Our products are widely used in power tools, new energy vehicles, energy-saving motors, wind power generation, high-end audio and other fields.
