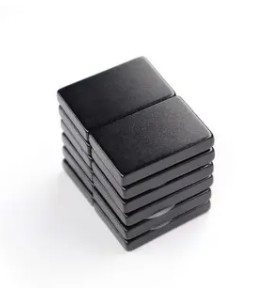

Super Strong Powerful NdFeB Permanent Magnets Size Customized
Product Details:
| Place of Origin: | China |
| Brand Name: | Monte Bianco |
| Certification: | ISO9001, ISO14001, TS16949 |
| Model Number: | N35-N52 (M.H.SH.UH.EH.AH) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 piece |
|---|---|
| Price: | Negotiatial |
| Packaging Details: | Standard Package |
| Delivery Time: | 15-30 working days after received your payment |
| Payment Terms: | T/T |
| Supply Ability: | 500k pcs/month |
|
Detail Information |
|||
| Product Name: | Powerful Permanent Magnets | Grade: | N35-N52 (M.H.SH.UH.EH.AH) |
|---|---|---|---|
| Color: | Customized | Size: | Customized Magnet Size |
| Tolerance: | 0.05mm, +/-0.1mm Or Customized | Type: | Permanent,Ndfeb Magnet |
| Material: | Permanent Neodymium Magnet | Brand Name: | Monte-Bianco |
| High Light: | Strong NdFeB Permanent Magnets,Powerful NdFeB Permanent Magnets,Super Strong Permanent Magnets |
||
Product Description
NdFeB Permanent Magnets N35-N52 Grade NdFeB Super Strong Powerful Magnets
Sintered Neodymium Iron Boron Magnets or "NdFeB" magnets offer the highest energy product of any material today and are available in a wide range of shapes, sizes and grades. NdFeB magnets can be found in a variety of applications including high performance motors, brushless DC motors, magnetic separation, magnetic resonance imaging, sensors and loudspeakers.
Neodymium magnets are all graded by the material they are made of. The higher the grade (the number following the 'N'), the stronger the magnet. The highest grade of neodymium magnet currently available is N52. Any letter following the grade refers to the temperature rating of the magnet. If there are no letters following the grade, then the magnet is standard temperature neodymium. The temperature ratings are standard (no designation) - M - H - SH - UH - EH.
| Grade | Max Operating Temperature | Grade | Max Operating Temperature |
| N35-N48 | 80℃ (176℉) | 30SH-45SH | 150℃ (302℉) |
| N50-N52 | 60℃ (140℉) | 30UH-45UH | 180℃ (356℉) |
| 30M-50M | 100℃ (212℉) | 28EH-38EH | 200℃ (392℉) |
| 30H-48H | 120℃ (248℉) | 28AH-35AH | 230℃ (446℉) |
