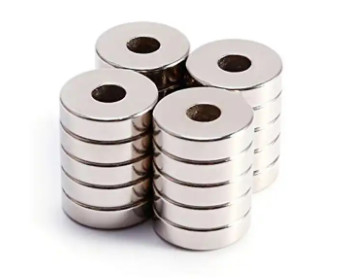

Neodymium Disc Countersunk Hole Magnets , NiCuNi Coating N52 Neo Magnetic Ring
Product Details:
| Place of Origin: | China |
| Brand Name: | Monte Bianco |
| Certification: | ISO9001, ISO14001, TS16949 |
| Model Number: | N35-N52 (M.H.SH.UH.EH.AH) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 piece |
|---|---|
| Price: | Negotiatial |
| Packaging Details: | Standard Package |
| Delivery Time: | 15-30 working days after received your payment |
| Payment Terms: | T/T |
| Supply Ability: | 500k pcs/month |
|
Detail Information |
|||
| Name: | Round Ring Magnets | Grade: | N52 |
|---|---|---|---|
| Coating: | NiCuNi | Magnetism Direction: | Axially Magnetized |
| Size: | Customized Magnet Size | Type: | Permanent, Round Block, Ring, NdFeB Magnet |
| Brand Name: | Monte-Bianco | Packing: | Foam Board+carton Box Or Customized |
| High Light: | Neodymium Disc Countersunk Hole Magnets,NiCuNi Coating Neo Magnetic Ring,N52 Neo Magnetic Ring |
||
Product Description
Customized Industrial Strong NdFeb Magnets N52 Neodymium Round Ring Magnet
The sintered neodymium iron boron permanent magnet material adopts a powder metallurgy process. The melted alloy is made into powder and pressed into a pressing embryo in a magnetic field. The pressing embryo is sintered in an inert gas or vacuum to achieve densification. In order to improve the coercivity of the magnet, aging heat treatment is usually required.
Specification
| grade | Max Operating Temperature | grade | Max Operating Temperature |
| N30-N54 | 80℃(176℉) | N30UH-N45UH | 180℃(356℉) |
| N30M-N52M | 100℃(212℉) | N30EH-N38EH | 200℃(392℉) |
| N30H-N52H | 120℃(248℉) | N32AH | 220℃(428℉) |
| N30SH-N45SH | 150℃(302℉) |
Application of Neodymium Iron Boron Magnets
1. Electroacoustic field: speakers, receivers, microphones, alarms, stage sound, car sound, etc,
2. Electronic products: permanent magnet vacuum circuit breakers, magnetic holding relays, electricity meters, water meters, sound level meters, magnetic spring switches, sensors, etc,
3. Motor field: VCM, CDVD-ROM, generators, motors, servo motors, micro motors, vibration motors, etc,
4. Mechanical equipment: magnetic separators, magnetic separators, magnetic hangers, magnetic machinery, etc,
5. Medical care: magnetic resonance machines, medical equipment, magnetic therapy health products, magnetized oil saving devices, etc,
6. Other industries: anti magnetization wax, pipeline cleaning agent, magnetic fixtures, magnetic locks, door and window magnets, stationery magnets, luggage magnets, leather magnets, toy magnets, tool magnets, craft gift packaging, etc.
