Super Powerful Strong Magnets Round Neodymium Magnets N52 Customized

Super Powerful Strong Magnets Round Neodymium Magnets N52 Customized

Product Details:

Place of Origin: China
Brand Name: Monte Bianco
Certification: ISO9001, ISO14001, TS16949
Model Number: N35-N52 (M.H.SH.UH.EH.AH)

Payment & Shipping Terms:

Minimum Order Quantity: 500 piece
Price: Negotiatial
Packaging Details: Standard Package
Delivery Time: 10-30 working days after received your payment
Payment Terms: T/T
Supply Ability: 500k pcs/month
Get Best Price Contact Now

Detail Information
Name: Powerful Strong Magnets Round Grade: N35-N52 (M.H.SH.UH.EH.AH)
Coating: Ni, Zn, Cr, Gold, Silver, Epoxy, Phosphating Tolerance: 0.05mm, +/-0.1mm Or Customized
Max Operating Temperature: 80-220℃（176-428℉） Size: Customized Magnet Size
Application: Industrial Magnet, Etc Lead Time: 10-25 Days
Highlight:

Powerful Strong Magnets Round

,

Super Powerful Strong Magnets

,

Round Neodymium Magnets N52

Product Description

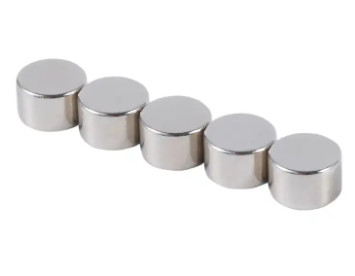

Custom Neodymium Magnets Round Super Powerful Strong NdFeB Neodymium Magnets



Sintered neodymium magnets are a powder metallurgy technology. Make the melted alloy into powder and press it into compact blocks in a magnetic field. The compactor is sintered in inert gas or vacuum to achieve densification. In order to improve the coercivity of magnets, aging heat treatment is usually required. From material preparation to finished product delivery, there are usually more than ten process steps, including several different stages of testing and analysis. The entire production process is a systematic engineering process, which is interconnected. Generally speaking, the production of neodymium iron boron is a large, complex, and interconnected system.



Sintered neodymium iron boron permanent magnet materials are divided into six categories based on the magnetic polarization strength and coercivity: low coercivity (without letters), medium coercivity M, high coercivity H, ultra-high coercivity SH, ultra-high coercivity UH, and extremely high coercivity EH.



Please see the following our neo magnet grade



grade Br Hcb Hcj (BH)max temperature coefficient Max working temperature
α Br β Hcj
T kGs kA/m kOe kA/m kOe kJ/m3 MGOe %/℃ %/℃ ℃
N54 1.45-1.48 14.5-14.8 ≥836 ≥10.5 ≥876 ≥11 415-461 52-58 -0.12 -0.65 80
N52 1.42-1.45 14.2-14.8 ≥836 ≥10.5 ≥876 ≥11 398-415 50-52 -0.12 -0.65 80
N50 1.40-1.42 14.0-14.5 ≥836 ≥10.5 ≥955 ≥12 374-398 47-50 -0.12 -0.65 80
N48 1.37-1.40 13.7-14.2 ≥836 ≥10.5 ≥955 ≥12 358-374 45-48 -0.12 -0.65 80
N45 1.32-1.37 13.2-13.7 ≥836 ≥10.5 ≥955 ≥12 342-358 43-45 -0.12 -0.65 80
N42 1.29-1.32 12.9-13.2 ≥836 ≥10.5 ≥955 ≥12 318-334 40-42 -0.12 -0.65 80
N40 1.26-1.29 12.6-12.9 ≥836 ≥10.5 ≥955 ≥12 303-318 38-40 -0.12 -0.65 80
N38 1.22-1.26 12.2-12.6 ≥859 ≥10.8 ≥955 ≥12 287-303 36-38 -0.12 -0.65 80
N35 1.17-1.21 11.7-12.1 ≥859 ≥10.8 ≥955 ≥12 263-279 33-35 -0.12 -0.65 80
N33 1.14-1.17 11.4-11.7 ≥836 ≥10.5 ≥955 ≥12 247-263 31-33 -0.12 -0.65 80
N30 1.08-1.12 10.8-11.2 ≥796 ≥10.0 ≥955 ≥12 223-239 28-30 -0.12 -0.65 80
N52M 1.42-1.45 14.2-14.5 ≥995 12.5 ≥1114 ≥14 389-422 49-53 -0.12 -0.65 100
N50M 1.39-1.45 13.9-14.5 ≥1050 ≥13.2 ≥1114 ≥14 374-406 47-51 -0.12 -0.65 100
N48M 1.37-1.42 13.7-14.2 ≥1018 ≥12.8 ≥1114 ≥14 366-390 46-49 -0.12 -0.65 100
N45M 1.32-1.38 13.2-13.8 ≥987 ≥12.4 ≥1114 ≥14 334-366 42-46 -0.12 -0.65 100
N42M 1.29-1.32 12.9-13.2 ≥955 ≥12.0 ≥1114 ≥14 318-334 40-42 -0.12 -0.65 100
N40M 1.26-1.29 12.6-12.9 ≥939 ≥11.8 ≥1114 ≥14 303-318 38-40 -0.12 -0.65 100
N38M 1.22-1.26 12.2-12.6 ≥916 ≥11.5 ≥1114 ≥14 287-303 36-38 -0.12 -0.65 100
N35M 1.17-1.21 11.7-12.1 ≥876 ≥11.0 ≥1114 ≥14 263-279 33-35 -0.12 -0.65 100
N33M 1.14-1.17 11.4-11.7 ≥852 ≥10.7 ≥1114 ≥14 247-263 31-33 -0.12 -0.65 100
N30M 1.08-1.12 10.8-11.2 ≥812 ≥10.2 ≥1114 ≥14 223-239 28-30 -0.12 -0.65 100
N52H 1.42-1.45 14.2-14.5 ≥1035 ≥13.0 ≥1353 ≥16.5 398-422 50-53 -0.11 -0.58 120
N50H 1.39-1.42 13.9-14.2 ≥1035 ≥13.0 ≥1353 ≥17 374-398 47-50 -0.11 -0.58 120
N48H 1.36-1.42 13.6-14.2 ≥1026 ≥12.9 ≥1353 ≥17 358-374 45-49 -0.11 -0.58 120
N45H 1.32-1.38 13.2-13.8 ≥987 ≥12.4 ≥1353 ≥17 334-366 42-46 -0.11 -0.58 120
N42H 1.29-1.32 12.9-13.2 ≥955 ≥12.0 ≥1353 ≥17 318-334 40-42 -0.11 -0.58 120
N40H 1.26-1.29 12.6-12.9 ≥939 ≥11.8 ≥1353 ≥17 303-318 38-40 -0.11 -0.62 120
N38H 1.22-1.26 12.2-12.6 ≥916 ≥11.6 ≥1353 ≥17 287-303 36-38 -0.11 -0.62 120
N35H 1.17-1.21 11.7-12.1 ≥875 ≥11.0 ≥1353 ≥17 263-279 33-35 -0.11 -0.62 120
N33H 1.14-1.17 11.4-11.7 ≥851 ≥10.7 ≥1353 ≥17 247-263 31-33 -0.11 -0.62 120
N30H 1.08-1.12 10.8-11.2 ≥812 ≥10.2 ≥1353 ≥17 223-239 28-30 -0.11 -0.62 120
N50SH 1.39-1.42 13.9-14.2 ≥1035 ≥13.0 ≥1500 ≥19 398-415 47-50 -0.11 -0.6 150
N48SH 1.36-1.42 13.6-14.2 ≥1026 ≥12.9 ≥1592 ≥20 358-398 45-49 -0.11 -0.6 150
N45SH 1.32-1.36 13.2-13.6 ≥987 ≥12.4 ≥1592 ≥20 334-366 42-46 -0.11 -0.6 150
N42SH 1.29-1.32 12.9-13.2 ≥963 ≥12.1 ≥1592 ≥20 318-334 40-42 -0.11 -0.6 150
N40SH 1.26-1.29 12.6-12.9 ≥931 ≥11.7 ≥1592 ≥20 303-318 38-40 -0.11 -0.6 150
N38SH 1.22-1.26 12.2-12.6 ≥899 ≥11.3 ≥1592 ≥20 287-303 36-38 -0.11 -0.6 150
N35SH 1.17-1.21 11.7-12.1 ≥876 ≥11.0 ≥1592 ≥20 263-279 33-35 -0.11 -0.6 150
N33SH 1.14-1.17 11.4-11.7 ≥851 ≥10.7 ≥1592 ≥20 247-263 31-33 -0.11 -0.6 150
N30SH 1.08-1.12 10.8-11.2 ≥812 ≥10.2 ≥1592 ≥20 223-239 28-30 -0.11 -0.6 150
N45UH 1.32-1.36 13.2-13.6 ≥987 ≥12.4 ≥1990 ≥25 334-366 42-46 -0.1 -0.55 180
N42UH 1.29-1.32 12.9-13.2 ≥963 ≥12.1 ≥1990 ≥25 318-334 40-42 -0.1 -0.55 180
N40UH 1.26-1.32 12.6-13.2 ≥939 ≥11.8 ≥1990 ≥25 303-318 38-40 -0.1 -0.55 180
N38UH 1.22-1.26 12.2-12.6 ≥915 ≥11.5 ≥1990 ≥25 287-303 36-38 -0.1 -0.55 180
N35UH 1.17-1.21 11.7-12.1 ≥875 ≥11.0 ≥1990 ≥25 263-279 33-35 -0.1 -0.55 180
N33UH 1.14-1.17 11.4-11.7 ≥851 ≥10.7 ≥1990 ≥25 247-263 31-33 -0.1 -0.55 180
N30UH 1.08-1.12 10.8-11.2 ≥812 ≥10.2 ≥1990 ≥25 223-239 28-30 -0.1 -0.55 180
N38EH 1.22-1.29 12.2-12.9 ≥907 ≥11.4 ≥2388 ≥30 287-318 36-40 -0.09 -0.5 200
N35EH 1.18-1.25 11.8-12.5 ≥875 ≥11.0 ≥2388 ≥30 263-295 33-37 -0.09 -0.5 200
N33EH 1.14-1.17 11.4-11.7 ≥851 ≥10.7 ≥2388 ≥30 247-263 31-33 -0.09 -0.5 200
N30EH 1.08-1.12 10.8-11.2 ≥812 ≥10.2 ≥2388 ≥30 223-239 28-30 -0.09 -0.5 200
N32AH 1.12-1.20 10.8-12.0 ≥860 ≥10.8 ≥2626 ≥33 247-279 31-35 -0.09 -0.44 220





Super Powerful Strong Magnets Round Neodymium Magnets N52 Customized 0
