Super Strong Sintered Custom Neodymium Magnets N50 N48 N52
Product Details:
| Place of Origin: | China |
| Brand Name: | Monte Bianco |
| Certification: | ISO9001, ISO14001, TS16949 |
| Model Number: | N35-N52 (M.H.SH.UH.EH.AH) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 piece |
|---|---|
| Price: | Negotiatial |
| Packaging Details: | Standard Package |
| Delivery Time: | 15-30 working days after received your payment |
| Payment Terms: | T/T |
| Supply Ability: | 500k pcs/month |
|
Detail Information |
|||
| Name: | Sintered Neodymium Magnets | Grade: | N52 |
|---|---|---|---|
| Coating: | Ni, Zn, Cr, Gold, Silver, Epoxy, Phosphating | Material: | Permanent Neodymium Magnet |
| Application: | Industrial Magnet, Etc | Brand Name: | Monte-Bianco |
| Size: | Customized Magnet Size | Place Of Origin: | Hunan,China |
| Highlight: | Super Strong Custom Neodymium Magnets,Custom Neodymium Magnets N50,Sintered Neodymium Magnets N48 |
||
Product Description

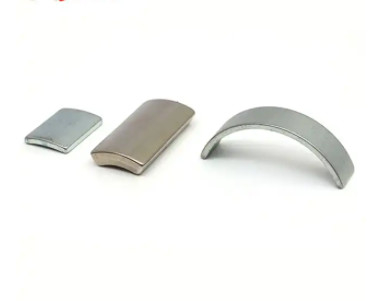

Super Strong Sintered N52 Neodymium Magnet Block Custom Neodymium Magnet
Specification
| Grade | Max Operating Temperature | Grade | Max Operating Temperature |
| N35-N48 | 80℃ (176℉) | 30SH-45SH | 150℃ (302℉) |
| N50-N52 | 60℃ (140℉) | 30UH-45UH | 180℃ (356℉) |
| 30M-50M | 100℃ (212℉) | 28EH-38EH | 200℃ (392℉) |
| 30H-48H | 120℃ (248℉) | 28AH-35AH | 230℃ (446℉) |
Coatings of Neodymium Magnet
cylinder magnets are a composition of mostly Neodymium, Iron and Boron. If left exposed to the elements, the iron in the magnet will rust. To protect the magnet from corrosion and to strengthen the brittle magnet material, it is usually preferable for the magnet to be coated. There are a variety of options for coatings, but nickel is the most common and usually preferred. Our nickel plated magnets are actually triple plated with layers of nickel, copper, and nickel again. This triple coating makes our magnets much more durable than the more common single nickel plated magnets. Some other options for coating are zinc, tin, copper,epoxy,silver and gold.
Shape of Neodymium Magnet
We can custom Any Shape neodymium magnets to your exact specifications, just send us a special request and we'll help you determine the most cost effective solution for your project.
We accept customized services:
1. Shape and Dimension Requirements
2. Material and coating requirements
3. Processing according to design drawings
4. Requirements for Magnetization Direction
5. Magnet Grade Requirements
6. Surface treatment requirements (plating requirements)
