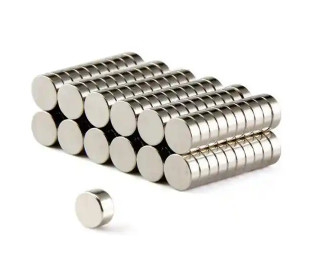

OEM N42 NdFeB Disc Magnet Sintered Epoxy Neodymium Magnets Disc
Product Details:
| Place of Origin: | China |
| Brand Name: | Monte Bianco |
| Certification: | ISO9001, ISO14001, TS16949 |
| Model Number: | N35-N52 (M.H.SH.UH.EH.AH) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard Package |
| Delivery Time: | 15-21 working days after received your payment |
| Payment Terms: | T/T |
| Supply Ability: | 1000k pcs/month |
|
Detail Information |
|||
| Product Name: | Epoxy Neodymium Magnets Disc | Grade: | N42 |
|---|---|---|---|
| Coating: | Zn, NiCuNi，Epoxy, | Size: | Customized |
| Shape: | Block, Ring, Disc, Arc, Bar | Magnetism Direction: | Radial Magnetizing,Axial. Customzied Specific Requirements |
| Lead Time: | 15-21days | Application: | Industrial Magnet, Etc |
| Processing: | Sintered Motor Magnet Permanent,Sintered | OEM: | Yes |
| Highlight: | N42 NdFeB Disc Magnet,OEM NdFeB Disc Magnet,Epoxy Neodymium Magnets Disc |
||
Product Description
Rare Earth Strong Permanent Sintered Disc N42 Ndfeb Magnet
Please see the following our neo magnet grade
| Magnet Dimension | Custom dimension is available | |
| Magnetized Direction | Please indicate magnetization direction when ordering | |
| Magnet Grade | We can supply all grades of Ndfeb magnets | |
| For example:N35,N42,N52, N45sh,N42uh... | ||
| If you are not sure which grade is appropriate, please feel free to contact our engineers. | ||
| Temperature Resistance | Temperature is the first factor you must consider when choosing magnets, please contact our engineers for details. | |
| Coating | Customised (Zn, Ni-Cu-Ni, Ni, Gold, Silver, Copper, Epoxy, Chrome, etc) | |
| Max. Working Temperature | Grade | Max. Operating Temperatures |
| N35-N52 | 80°C (176°F) | |
| 33M- 48M | 100°C (212°F) | |
| 33H-48H | 120°C (248°F) | |
| 30SH-45SH | 150°C (302°F) | |
| 30UH-40UH | 180°C (356°F) | |
| 28EH-38EH | 200°C (392°F) | |
| 28AH-35AH | 220°C (428°F) | |
| Notice | 1. Be careful of fragile and clamped hands. | |
| 2. Store in a dry place at room temperature! | ||
| 3. Pull out carefully. When connecting the two magnets, slowly and gently close each other. Hard rolling can cause damage and cracking of magnets. | ||
| 4. Children are not allowed to play with naked Ndfeb magnets. | ||
Sintered neodymium iron boron permanent magnet material is an energy storage device with high energy density, which can efficiently achieve the mutual conversion of energy and information. Applied to strategic emerging industries such as wind power generation, new energy vehicles, energy-saving motors, and hybrid vehicles.
What are grades in neodymium magnets?
When you see neodymium magnets classified as N35,N38,N40,N42,N45,N48,N50,N52.Have you ever wondered what it means?The letter N short for words neodymium.And the number after N represents the grade of the magnet.In general,the higher the grade the stronger the magnet.The highest grade so far in neodymium magnet is N52.If a magnet is labled as N42SH,then 42 depicts the strength of the magnet and SH refers to the temperature rating of the magnet.If the numbers are not followed by any letters,it means that the magnet is standard temperature neodymium.
Monte-Bianco Magnets Co., Ltd. is located in Changsha, Hunan Province. With more than 1000 skilled employees, our company has an annual production capacity of 2000 tons. Our company is able to supply a full range of products. It has been equipped with entire production capacity of product development, mold development and manufacturing, block production, finished product processing, surface treatment and other processes under fully controlled and managed process. Our products are widely used in power tools, new energy vehicles, energy-saving motors, wind power generation, high-end audio and other fields.
