Black NdFeB Disc Magnet Size Customized Epoxy Coated Neodymium Magnets
Product Details:
| Place of Origin: | China |
| Brand Name: | Monte Bianco |
| Certification: | ISO9001, ISO14001, TS16949 |
| Model Number: | N35-N52 (M.H.SH.UH.EH.AH) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 piece |
|---|---|
| Price: | Negotiatial |
| Packaging Details: | Standard Package |
| Delivery Time: | 15-21 working days after received your payment |
| Payment Terms: | T/T |
| Supply Ability: | 1000k pcs/month |
|
Detail Information |
|||
| Product Name: | Epoxy Neodymium Magnets | Grade: | N35-N52 (M.H.SH.UH.EH.AH) |
|---|---|---|---|
| Coating: | Epoxy | Tolerance: | 0.05mm, +/-0.1mm Or Customized |
| Size: | Customized Magnet Size | Lead Time: | 15-21 Days |
| Type: | Permanent , Ndfeb Magnet | Packing: | Foam Board+carton Box Or Customized |
| Highlight: | Black NdFeB Disc Magnet,Custom NdFeB Disc Magnet,Epoxy Coated Neodymium Magnets |
||
Product Description

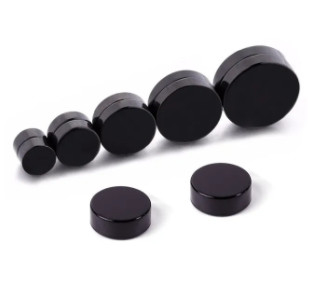

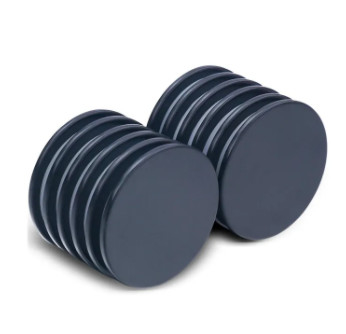

Disc Neodymium Magnet Round Black Epoxy Coating Rare Earth NdFeB Magnet
Sintered NdFeB permanent magnet material is an energy storage device with high energy density, which can efficiently achieve the mutual conversion of energy and information. It is a fundamental functional material urgently needed by strategic emerging industries such as wind power generation, new energy vehicles, energy-saving motors, and hybrid electric vehicles.
There are many levels of NdFeB magnets
| Grade | Max Operating Temperature | Grade | Max Operating Temperature |
| N35-N48 | 80℃ (176℉) | 30SH-45SH | 150℃ (302℉) |
| N50-N52 | 60℃ (140℉) | 30UH-45UH | 180℃ (356℉) |
| 30M-50M | 100℃ (212℉) | 28EH-38EH | 200℃ (392℉) |
| 30H-48H | 120℃ (248℉) | 28AH-35AH | 230℃ (446℉) |
Epoxy resin is coated with nickel on neodymium iron boron magnets and then coated with a layer of resin paint. Epoxy resin electrophoresis is divided into metal electroplated coating (nickel/copper) as a base, epoxy resin electrophoresis layer, and direct coating of epoxy resin on the magnet substrate. Magnets with epoxy resin treatment on the surface are mainly used in strict fields such as elevators, compressors, and motors.
Characteristics of Magnets Coated with Epoxy Resin
1. High temperature resistance of 380 ℃. (Non magnetic temperature resistance)
2. Solvent resistant.
3. Multi color. What we usually see is black epoxy, but there are actually other colors, but they are not common, such as gray, red, and other colors.
4. No hanging points.
5. Salt spray resistant for 72 hours.
6. The coating thickness is 15-25um.
Monte-Bianco Magnets Co., Ltd. is located in Changsha, Hunan Province. With more than 1000 skilled employees, our company has an annual production capacity of 2000 tons. Our company is able to supply a full range of products. It has been equipped with entire production capacity of product development, mold development and manufacturing, block production, finished product processing, surface treatment and other processes under fully controlled and managed process. Our products are widely used in power tools, new energy vehicles, energy-saving motors, wind power generation, high-end audio and other fields.
