Powerful Square Block NdFeB Magnet Neodymium Super Strong Magnets
Product Details:
| Place of Origin: | China |
| Brand Name: | Monte Bianco |
| Certification: | ISO9001, ISO14001, TS16949 |
| Model Number: | N35-N52 (M.H.SH.UH.EH.AH) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard Package |
| Delivery Time: | 15-21 working days after received your payment |
| Payment Terms: | T/T |
| Supply Ability: | 1000k pcs/month |
|
Detail Information |
|||
| Name: | Neodymium Super Strong Magnets | Grade: | N35-N52 (M.H.SH.UH.EH.AH) |
|---|---|---|---|
| Coating: | Ni Cu Ni, Zn, Cr, Gold, Silver, Epoxy, Phosphating | Type: | Permanent, Round Block, Ring, NdFeB Magnet |
| Tolerance: | International Standard | Max Operating Temperature: | 80-220℃（176-428℉） |
| Composite: | Neodymium Magnet, NdFeB Magnet, Rubber Magnet, Rare Earth Magnet, Neodymium-Iron-Boron | Packing: | Foam Board+carton Box Or Customized |
| Brand Name: | Monte Bianco/OEM | Place Of Origin: | Hunan,China |
| Highlight: | Square Block NdFeB Magnet,Powerful Block NdFeB Magnet,Neodymium Super Strong Magnets |
||
Product Description

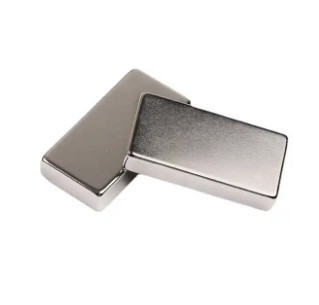

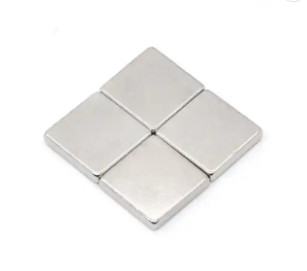

Super Strong N35-N52 NdFeB Square Magnetic Block Neodymium Magnet
Sintered neodymium iron boron magnets are mainly used in automobiles (electric drive, electric power steering, sensors, etc.), wind power generation, information industry (hard disk drives, optical disk drives), consumer electronics (mobile phones, digital cameras), household appliances (variable frequency air conditioning, refrigerators, and washing machines), elevator linear motors, nuclear magnetic resonance imaging machines, etc.
| Magnet Dimension | Custom dimension is available | |
| Magnetized Direction | Please indicate magnetization direction when ordering | |
| Magnet Grade | We can supply all grades of Ndfeb magnets | |
| For example:N35,N42,N52, N45sh,N42uh... | ||
| If you are not sure which grade is appropriate, please feel free to contact our engineers. | ||
| Temperature Resistance | Temperature is the first factor you must consider when choosing magnets, please contact our engineers for details. | |
| Coating | Customised (Zn, Ni-Cu-Ni, Ni, Gold, Silver, Copper, Epoxy, Chrome, etc) | |
| Max. Working Temperature | Grade | Max. Operating Temperatures |
| N35-N52 | 80°C (176°F) | |
| 33M- 48M | 100°C (212°F) | |
| 33H-48H | 120°C (248°F) | |
| 30SH-45SH | 150°C (302°F) | |
| 30UH-40UH | 180°C (356°F) | |
| 28EH-38EH | 200°C (392°F) | |
| 28AH-35AH | 220°C (428°F) | |
| Notice | 1. Be careful of fragile and clamped hands. | |
| 2. Store in a dry place at room temperature! | ||
| 3. Pull out carefully. When connecting the two magnets, slowly and gently close each other. Hard rolling can cause damage and cracking of magnets. | ||
| 4. Children are not allowed to play with naked Ndfeb magnets. | ||
Neodymium magnet, also known as NdFeB magnet, is a tetragonal crystal system formed by Neodymium, iron and boron (Nd2Fe14B).If the magnet is not electroplated, it will rusted and corroded easily when the magnet is under moist air environment.
Available Coating of Sintered NdFeB Magnet:Nickel,Environmentlally-Friendly Zinc,Black Epoxy,Gold,Phosphated.
Monte-Bianco Magnets Co., Ltd. is located in Changsha, Hunan Province. With more than 1000 skilled employees, our company has an annual production capacity of 2000 tons. Our company is able to supply a full range of products. It has been equipped with entire production capacity of product development, mold development and manufacturing, block production, finished product processing, surface treatment and other processes under fully controlled and managed process. Our products are widely used in power tools, new energy vehicles, energy-saving motors, wind power generation, high-end audio and other fields.
