Neodymium Rare Earth Block Magnets , Powerful Permanent Magnets N52
Product Details:
| Place of Origin: | China |
| Brand Name: | Monte Bianco |
| Certification: | ISO9001, ISO14001, TS16949 |
| Model Number: | N35-N52 (M.H.SH.UH.EH.AH) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 piece |
|---|---|
| Price: | Negotiatial |
| Packaging Details: | Standard Package |
| Delivery Time: | 15-30 working days after received your payment |
| Payment Terms: | T/T |
| Supply Ability: | 500k pcs/month |
|
Detail Information |
|||
| Product Name: | Powerful Permanent Magnets | Grade: | N52 |
|---|---|---|---|
| Coating: | Ni, Zn, Cr, Gold, Silver, Epoxy, Phosphating | Size: | Customized Magnet Size |
| Lead Time: | 10-25 Days | Magnetism Direction: | Radial Magnetizing,Axial. Customzied Specific Requirements |
| Tolerance: | 0.05mm, +/-0.1mm Or Customized | Processing: | Sintered Motor Magnet Permanent,Sintered |
| Application: | Industrial Magnet | OEM: | Yes |
| High Light: | Neodymium Rare Earth Block Magnets,Powerful Permanent Magnets N52 |
||
Product Description

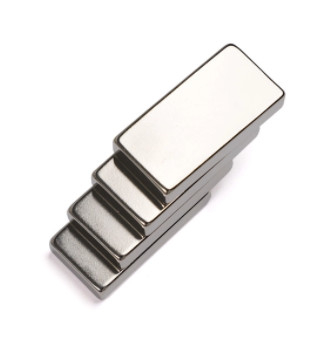

High Quality NdFeB Magnet N52 Sintered Neodymium Block Permanent Magnet
The third generation of rare earth permanent magnet NdFeB is the most powerful permanent magnet in modern magnets. It not only has the characteristics of high remanence, high coercivity, high magnetic energy product, high performance-to-price ratio, but also is easy to be processed into various sizes.
There are many levels of NdFeB magnets
| Grade | Max Operating Temperature | Grade | Max Operating Temperature |
| N35-N48 | 80℃ (176℉) | 30SH-45SH | 150℃ (302℉) |
| N50-N52 | 60℃ (140℉) | 30UH-45UH | 180℃ (356℉) |
| 30M-50M | 100℃ (212℉) | 28EH-38EH | 200℃ (392℉) |
| 30H-48H | 120℃ (248℉) | 28AH-35AH | 230℃ (446℉) |
Material
The raw materials are Nd, Fe and B. Starting from the selection of materials, high-quality neodymium-iron-boron magnets are produced with high-quality rare-earth materials and various mixed materials.
Coating
Has a variety of conventional Ni-Cu-Ni, Zn, black epoxy coating. after plating, has a good rust, corrosion resistance.Corrosion resistance: black epoxy> Ni-Cu-Ni > Zn
