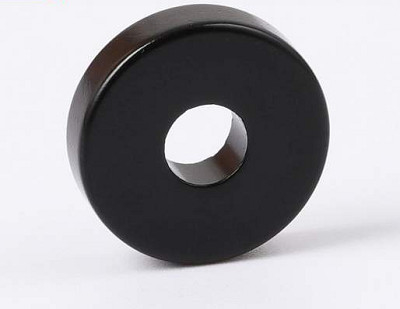

Black OEM Rare Earth Ring Magnets N35-N52 Shape / Dimension Customized

Black OEM Rare Earth Ring Magnets N35-N52 Shape / Dimension Customized

Product Details:

Place of Origin: China
Brand Name: Monte Bianco
Certification: ISO9001, ISO14001, TS16949
Model Number: N35-N52 (M.H.SH.UH.EH.AH)

Payment & Shipping Terms:

Minimum Order Quantity: 500PCS
Price: Negotiation
Packaging Details: Standard Package,Negotiable
Delivery Time: 15-30 working days after received your payment
Payment Terms: T/T
Supply Ability: 1000k pcs/month
Get Best Price Contact Now

Detail Information
Product Name: Ring Rare Earth Magnets Grade: N35-N52 (M.H.SH.UH.EH.AH)
Coating: Epoxy , Ni-Cu-Ni Shape: Round Ring
Magnetism Directionre: Radial Magnetizing,Axial. Customzied Specific Requirements Tolerance: 0.05mm, +/-0.1mm Or Customized
Lead Time: 10-25 Days Application: Industrial Magnet
High Light:

Black Rare Earth Magnets Ring

,

Rare Earth Ring Magnets N35

,

OEM Magnet Rare Earth Magnets

Product Description

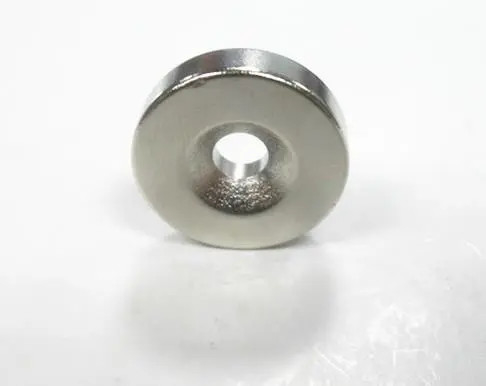

Epoxy,Ni-Cu-Ni Coating Ndfeb Magnet Round Ring Neodymium Magnet


Neodymium ring magnets are strong rare earth magnets that are circular in shape and have a hollow center. Neodymium (also known as "Neo", "NdFeb", or "NIB") ring magnets are the most powerful magnets on the market today, with far more magnetic properties than other permanent magnet materials. Due to its high magnetic strength, neodymium ring magnets have replaced other magnetic materials to make the design smaller and achieve the same effect.



Please see the following our neo magnet grade



grade Br Hcb Hcj (BH)max temperature coefficient Max working temperature
α Br β Hcj
T kGs kA/m kOe kA/m kOe kJ/m3 MGOe %/℃ %/℃ ℃
N54 1.45-1.48 14.5-14.8 ≥836 ≥10.5 ≥876 ≥11 415-461 52-58 -0.12 -0.65 80
N52 1.42-1.45 14.2-14.8 ≥836 ≥10.5 ≥876 ≥11 398-415 50-52 -0.12 -0.65 80
N50 1.40-1.42 14.0-14.5 ≥836 ≥10.5 ≥955 ≥12 374-398 47-50 -0.12 -0.65 80
N48 1.37-1.40 13.7-14.2 ≥836 ≥10.5 ≥955 ≥12 358-374 45-48 -0.12 -0.65 80
N45 1.32-1.37 13.2-13.7 ≥836 ≥10.5 ≥955 ≥12 342-358 43-45 -0.12 -0.65 80
N42 1.29-1.32 12.9-13.2 ≥836 ≥10.5 ≥955 ≥12 318-334 40-42 -0.12 -0.65 80
N40 1.26-1.29 12.6-12.9 ≥836 ≥10.5 ≥955 ≥12 303-318 38-40 -0.12 -0.65 80
N38 1.22-1.26 12.2-12.6 ≥859 ≥10.8 ≥955 ≥12 287-303 36-38 -0.12 -0.65 80
N35 1.17-1.21 11.7-12.1 ≥859 ≥10.8 ≥955 ≥12 263-279 33-35 -0.12 -0.65 80
N33 1.14-1.17 11.4-11.7 ≥836 ≥10.5 ≥955 ≥12 247-263 31-33 -0.12 -0.65 80
N30 1.08-1.12 10.8-11.2 ≥796 ≥10.0 ≥955 ≥12 223-239 28-30 -0.12 -0.65 80
N52M 1.42-1.45 14.2-14.5 ≥995 12.5 ≥1114 ≥14 389-422 49-53 -0.12 -0.65 100
N50M 1.39-1.45 13.9-14.5 ≥1050 ≥13.2 ≥1114 ≥14 374-406 47-51 -0.12 -0.65 100
N48M 1.37-1.42 13.7-14.2 ≥1018 ≥12.8 ≥1114 ≥14 366-390 46-49 -0.12 -0.65 100
N45M 1.32-1.38 13.2-13.8 ≥987 ≥12.4 ≥1114 ≥14 334-366 42-46 -0.12 -0.65 100
N42M 1.29-1.32 12.9-13.2 ≥955 ≥12.0 ≥1114 ≥14 318-334 40-42 -0.12 -0.65 100
N40M 1.26-1.29 12.6-12.9 ≥939 ≥11.8 ≥1114 ≥14 303-318 38-40 -0.12 -0.65 100
N38M 1.22-1.26 12.2-12.6 ≥916 ≥11.5 ≥1114 ≥14 287-303 36-38 -0.12 -0.65 100
N35M 1.17-1.21 11.7-12.1 ≥876 ≥11.0 ≥1114 ≥14 263-279 33-35 -0.12 -0.65 100
N33M 1.14-1.17 11.4-11.7 ≥852 ≥10.7 ≥1114 ≥14 247-263 31-33 -0.12 -0.65 100
N30M 1.08-1.12 10.8-11.2 ≥812 ≥10.2 ≥1114 ≥14 223-239 28-30 -0.12 -0.65 100
N52H 1.42-1.45 14.2-14.5 ≥1035 ≥13.0 ≥1353 ≥16.5 398-422 50-53 -0.11 -0.58 120
N50H 1.39-1.42 13.9-14.2 ≥1035 ≥13.0 ≥1353 ≥17 374-398 47-50 -0.11 -0.58 120
N48H 1.36-1.42 13.6-14.2 ≥1026 ≥12.9 ≥1353 ≥17 358-374 45-49 -0.11 -0.58 120
N45H 1.32-1.38 13.2-13.8 ≥987 ≥12.4 ≥1353 ≥17 334-366 42-46 -0.11 -0.58 120
N42H 1.29-1.32 12.9-13.2 ≥955 ≥12.0 ≥1353 ≥17 318-334 40-42 -0.11 -0.58 120
N40H 1.26-1.29 12.6-12.9 ≥939 ≥11.8 ≥1353 ≥17 303-318 38-40 -0.11 -0.62 120
N38H 1.22-1.26 12.2-12.6 ≥916 ≥11.6 ≥1353 ≥17 287-303 36-38 -0.11 -0.62 120
N35H 1.17-1.21 11.7-12.1 ≥875 ≥11.0 ≥1353 ≥17 263-279 33-35 -0.11 -0.62 120
N33H 1.14-1.17 11.4-11.7 ≥851 ≥10.7 ≥1353 ≥17 247-263 31-33 -0.11 -0.62 120
N30H 1.08-1.12 10.8-11.2 ≥812 ≥10.2 ≥1353 ≥17 223-239 28-30 -0.11 -0.62 120
N50SH 1.39-1.42 13.9-14.2 ≥1035 ≥13.0 ≥1500 ≥19 398-415 47-50 -0.11 -0.6 150
N48SH 1.36-1.42 13.6-14.2 ≥1026 ≥12.9 ≥1592 ≥20 358-398 45-49 -0.11 -0.6 150
N45SH 1.32-1.36 13.2-13.6 ≥987 ≥12.4 ≥1592 ≥20 334-366 42-46 -0.11 -0.6 150
N42SH 1.29-1.32 12.9-13.2 ≥963 ≥12.1 ≥1592 ≥20 318-334 40-42 -0.11 -0.6 150
N40SH 1.26-1.29 12.6-12.9 ≥931 ≥11.7 ≥1592 ≥20 303-318 38-40 -0.11 -0.6 150
N38SH 1.22-1.26 12.2-12.6 ≥899 ≥11.3 ≥1592 ≥20 287-303 36-38 -0.11 -0.6 150
N35SH 1.17-1.21 11.7-12.1 ≥876 ≥11.0 ≥1592 ≥20 263-279 33-35 -0.11 -0.6 150
N33SH 1.14-1.17 11.4-11.7 ≥851 ≥10.7 ≥1592 ≥20 247-263 31-33 -0.11 -0.6 150
N30SH 1.08-1.12 10.8-11.2 ≥812 ≥10.2 ≥1592 ≥20 223-239 28-30 -0.11 -0.6 150
N45UH 1.32-1.36 13.2-13.6 ≥987 ≥12.4 ≥1990 ≥25 334-366 42-46 -0.1 -0.55 180
N42UH 1.29-1.32 12.9-13.2 ≥963 ≥12.1 ≥1990 ≥25 318-334 40-42 -0.1 -0.55 180
N40UH 1.26-1.32 12.6-13.2 ≥939 ≥11.8 ≥1990 ≥25 303-318 38-40 -0.1 -0.55 180
N38UH 1.22-1.26 12.2-12.6 ≥915 ≥11.5 ≥1990 ≥25 287-303 36-38 -0.1 -0.55 180
N35UH 1.17-1.21 11.7-12.1 ≥875 ≥11.0 ≥1990 ≥25 263-279 33-35 -0.1 -0.55 180
N33UH 1.14-1.17 11.4-11.7 ≥851 ≥10.7 ≥1990 ≥25 247-263 31-33 -0.1 -0.55 180
N30UH 1.08-1.12 10.8-11.2 ≥812 ≥10.2 ≥1990 ≥25 223-239 28-30 -0.1 -0.55 180
N38EH 1.22-1.29 12.2-12.9 ≥907 ≥11.4 ≥2388 ≥30 287-318 36-40 -0.09 -0.5 200
N35EH 1.18-1.25 11.8-12.5 ≥875 ≥11.0 ≥2388 ≥30 263-295 33-37 -0.09 -0.5 200
N33EH 1.14-1.17 11.4-11.7 ≥851 ≥10.7 ≥2388 ≥30 247-263 31-33 -0.09 -0.5 200
N30EH 1.08-1.12 10.8-11.2 ≥812 ≥10.2 ≥2388 ≥30 223-239 28-30 -0.09 -0.5 200
N32AH 1.12-1.20 10.8-12.0 ≥860 ≥10.8 ≥2626 ≥33 247-279 31-35 -0.09 -0.44 220



In order to give you an accurate quote, you need to provide the following details about the magnet:



1.  Dimensions - (Please specify all dimensions in millimeters or inches).
Arc magnet: outer diameter x inner diameter x width x thickness
If you have magnets with special shapes, please provide us with sketches or drawings.



2.  Grade requirements



3.  Coating requirements



4.  Magnetization direction



5.  Working temperature



6.  Quantity required
