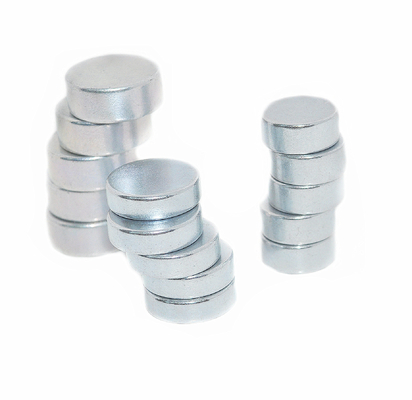

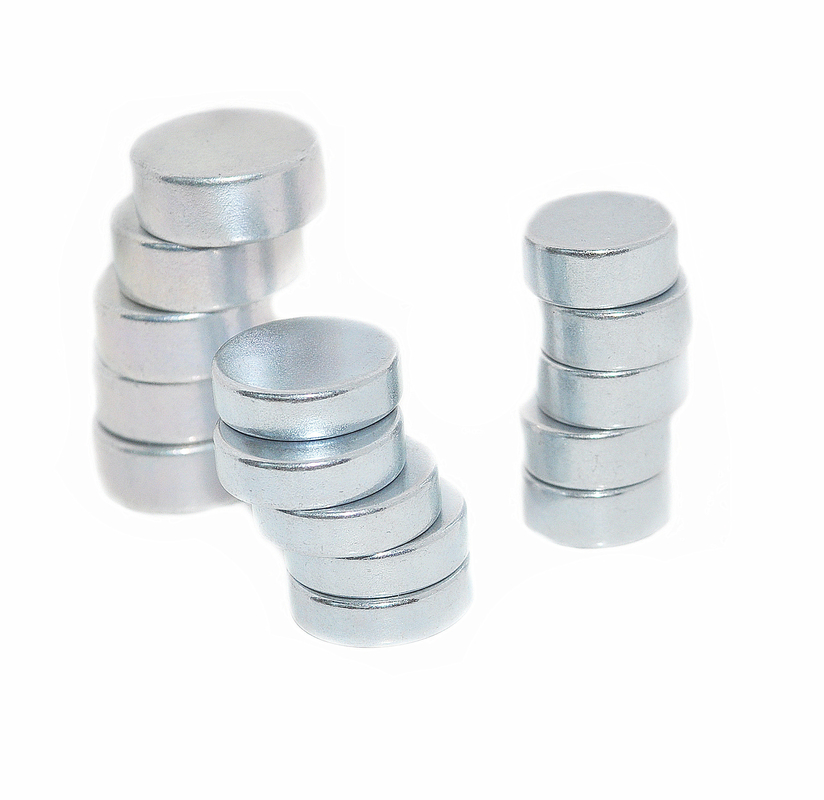

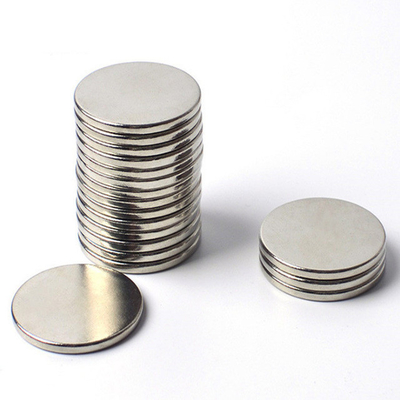

Sintered NdFeB Disc Magnet Strong Industrial Neodymium Magnets For Loudspeakers
Product Details:
| Place of Origin: | China |
| Brand Name: | Monte Bianco |
| Certification: | ISO9001, ISO14001, TS16949 |
| Model Number: | N35-N52 (M.H.SH.UH.EH.AH) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 piece |
|---|---|
| Price: | Negotiatial |
| Packaging Details: | Standard Package |
| Delivery Time: | 15-21 working days after received your payment |
| Payment Terms: | T/T |
| Supply Ability: | 1000k pcs/month |
|
Detail Information |
|||
| Name: | Strong Circle Magnets | Grade: | N35-N52 (M.H.SH.UH.EH.AH) |
|---|---|---|---|
| Coating: | Ni, Zn, Cr, Gold, Silver, Epoxy, Phosphating | Size: | Customized Magnet Size |
| Magnetism Direction: | Axial/Radial,Axially Magnetized | Composite: | NdFeB Magnet,Neodymium Magnet,Rare Earth Magnet,Ferrite Magnet,Rare Earth Nd-Fe-B |
| Tolerance: | 0.05mm ~ 0.1mm | Processing: | Sintered |
| Highlight: | Loudspeakers NdFeB Disc Magnet,Sintered NdFeB Disc Magnet,Strong Industrial Neodymium Magnets |
||
Product Description
Strong Neodymium Magnets Disc Nefeb Magnet For Loudspeakers
Sintered neodymium iron boron is a new type of permanent magnet material, which is an alloy composed of rare earth metal nd fe-b.
There are many levels of NdFeB magnets
| grade | Max Operating Temperature | grade | Max Operating Temperature |
| N30-N54 | 80℃(176℉) | N30UH-N45UH | 180℃(356℉) |
| N30M-N52M | 100℃(212℉) | N30EH-N38EH | 200℃(392℉) |
| N30H-N52H | 120℃(248℉) | N32AH | 220℃(428℉) |
| N30SH-N45SH | 150℃(302℉) |
The unit of coercivity is either Oe or A/m, with 1A/m=79.6Oe. Coercivity is divided into magnetic induced coercivity (Hcb) and intrinsic coercivity (Hcj).
1. Magnetically induced coercivity
When an electromagnetic field is magnetized in the opposite direction, the value of the magnetic induction intensity in the opposite direction required to reduce the magnetic induction intensity to zero is called magnetic coercivity. But at this time, the magnetization of the electromagnetic field is not zero, but the strength of the applied reverse magnetic field and the magnetization of the electromagnetic field complement each other. When the external magnetic induction intensity is zero, if the external electromagnetic field is removed, the electromagnetic field still has certain magnetic properties.
2. Intrinsic coercivity
The reverse magnetic induction required to reduce the magnetization of the magnet to zero is called intrinsic coercivity. The intrinsic coercivity is a physical quantity that measures the ability of electromagnetic field to resist demagnetization, and it is the coercivity that indicates that the magnetization M in the raw material recedes to zero. In the use of electromagnetic fields, the greater the coercive force of the electromagnetic field, the better the environmental temperature stability.
We accept customized services:
1. Shape and Dimension Requirements
2. Material and coating requirements
3. Processing according to design drawings
4. Requirements for Magnetization Direction
5. Magnet Grade Requirements
6. Surface treatment requirements (plating requirements)
Monte-Bianco Magnets Co., Ltd. is located in Changsha, Hunan Province. With more than 1000 skilled employees, our company has an annual production capacity of 2000 tons. Our company is able to supply a full range of products. It has been equipped with entire production capacity of product development, mold development and manufacturing, block production, finished product processing, surface treatment and other processes under fully controlled and managed process. Our products are widely used in power tools, new energy vehicles, energy-saving motors, wind power generation, high-end audio and other fields.
