Ni Cu Ni Coating N38 NdFeB Magnet Block Special Shaped For Hardware Machinery
Product Details:
| Place of Origin: | China |
| Brand Name: | Monte Bianco |
| Certification: | ISO9001, ISO14001, TS16949 |
| Model Number: | N35-N52 (M.H.SH.UH.EH.AH) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500PCS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard Package,Negotiable |
| Delivery Time: | 15-30 working days after received your payment |
| Payment Terms: | T/T |
| Supply Ability: | 1000k pcs/month |
|
Detail Information |
|||
| Product Name: | N52 Neodymium Block Magnet | Grade: | N35-N52 (M.H.SH.UH.EH.AH) |
|---|---|---|---|
| Coating: | NiCuNi, Zn, Cr, Gold, Silver, Epoxy, Phosphating | Material: | Sintered Neodymium-Iron-Boron, NeFeB Magnet, Neodymium Iron Boron, Nd-Fe-B, Neodymium+steel+plastic |
| Tolerance: | 0.05mm, +/-0.1mm Or Customized | Processing: | Sintered |
| Size: | Customized | Place Of Origin: | Hunan,China |
| High Light: | N38 NdFeB Magnet Block,Ni Coating NdFeB Magnet Block |
||
Product Description

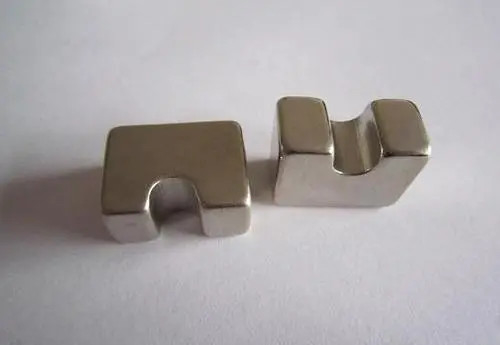

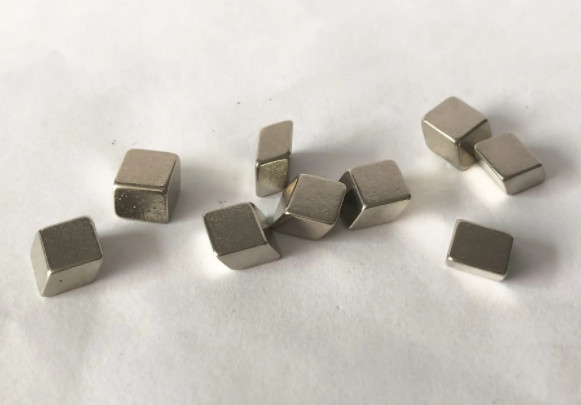

Block NdFeB Magnets Ni Cu Ni Coating Customized Special-shaped
Magnets are non-standard customized products, and each magnet product is produced and processed according to customer needs. Each customer has different requirements for magnetic products, such as: magnetization method, tolerance, magnetic force size, surface requirements, electroplating requirements, salt spray resistance requirements, high temperature resistance requirements, etc.
In order to give you an accurate quote, you need to provide the following details about the magnet:
1. Dimensions - (Please specify all dimensions in millimeters or inches).
Arc magnet: outer diameter x inner diameter x width x thickness
If you have magnets with special shapes, please provide us with sketches or drawings.
2. Grade requirements
| grade | Max Operating Temperature | grade | Max Operating Temperature |
| N30-N54 | 80℃(176℉) | N30UH-N45UH | 180℃(356℉) |
| N30M-N52M | 100℃(212℉) | N30EH-N38EH | 200℃(392℉) |
| N30H-N52H | 120℃(248℉) | N32AH | 220℃(428℉) |
| N30SH-N45SH | 150℃(302℉) |
3. Coating requirements
4. Magnetization direction
5. Working temperature
6. Quantity required
