• Large Block Magnet NdFeb N42 Magnet Customized Size For Industrial
  • Large Block Magnet NdFeb N42 Magnet Customized Size For Industrial

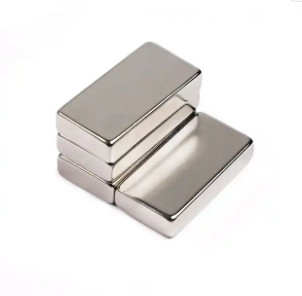

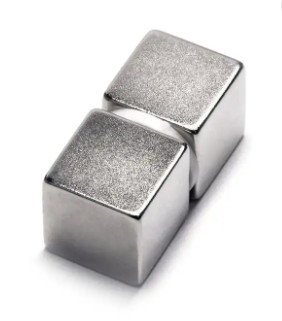

Large Block Magnet NdFeb N42 Magnet Customized Size For Industrial

Large Block Magnet NdFeb N42 Magnet Customized Size For Industrial

Product Details:

Place of Origin: China
Brand Name: Monte Bianco
Certification: ISO9001, ISO14001, TS16949
Model Number: N35-N52 (M.H.SH.UH.EH.AH)

Payment & Shipping Terms:

Minimum Order Quantity: 500 piece
Price: Negotiatial
Packaging Details: Standard Package
Delivery Time: 20-30 working days after received your payment
Payment Terms: T/T
Supply Ability: 500k pcs/month
Get Best Price Contact Now

Detail Information
Name: Neodymium Super Strong Magnets Grade: N35-N52 (M.H.SH.UH.EH.AH)
Coating: Ni, Zn, Cr, Gold, Silver, Epoxy, Phosphating Max Operating Temperature: 80-220℃（176-428℉）
Composite: Neodymium Magnet, NdFeB Magnet, Rare Earth Magnet, Ferrite Magne Processing: Sintered
Application: Industrial Magnet Place Of Origin: Hunan,China
High Light:

Large Block Magnet Ndfeb

,

NdFeb N42 Magnet

Product Description

Block NdFeB Magnets Customized Size New energy Neodymium Magnet​



Sintered neodymium magnets are very powerful magnets with much greater magnetism compared to other magnets, making them particularly suitable for mass production of various shapes and sizes. Accurate dimensional control can be achieved during the machining process. With these advantages, neodymium magnets have been widely used in many commercial fields such as high-performance motors, brushless DC motors, magnetic separators, magnetic resonance imaging (MRI), sensors, speakers, consumer electronics, and green energy.



Please see the following our neo magnet grade.

grade Br Hcb Hcj (BH)max temperature coefficient Max working temperature
α Br β Hcj
T kGs kA/m kOe kA/m kOe kJ/m3 MGOe %/℃ %/℃ ℃
N54 1.45-1.48 14.5-14.8 ≥836 ≥10.5 ≥876 ≥11 415-461 52-58 -0.12 -0.65 80
N52 1.42-1.45 14.2-14.8 ≥836 ≥10.5 ≥876 ≥11 398-415 50-52 -0.12 -0.65 80
N50 1.40-1.42 14.0-14.5 ≥836 ≥10.5 ≥955 ≥12 374-398 47-50 -0.12 -0.65 80
N48 1.37-1.40 13.7-14.2 ≥836 ≥10.5 ≥955 ≥12 358-374 45-48 -0.12 -0.65 80
N45 1.32-1.37 13.2-13.7 ≥836 ≥10.5 ≥955 ≥12 342-358 43-45 -0.12 -0.65 80
N42 1.29-1.32 12.9-13.2 ≥836 ≥10.5 ≥955 ≥12 318-334 40-42 -0.12 -0.65 80
N40 1.26-1.29 12.6-12.9 ≥836 ≥10.5 ≥955 ≥12 303-318 38-40 -0.12 -0.65 80
N38 1.22-1.26 12.2-12.6 ≥859 ≥10.8 ≥955 ≥12 287-303 36-38 -0.12 -0.65 80
N35 1.17-1.21 11.7-12.1 ≥859 ≥10.8 ≥955 ≥12 263-279 33-35 -0.12 -0.65 80
N33 1.14-1.17 11.4-11.7 ≥836 ≥10.5 ≥955 ≥12 247-263 31-33 -0.12 -0.65 80
N30 1.08-1.12 10.8-11.2 ≥796 ≥10.0 ≥955 ≥12 223-239 28-30 -0.12 -0.65 80
N52M 1.42-1.45 14.2-14.5 ≥995 12.5 ≥1114 ≥14 389-422 49-53 -0.12 -0.65 100
N50M 1.39-1.45 13.9-14.5 ≥1050 ≥13.2 ≥1114 ≥14 374-406 47-51 -0.12 -0.65 100
N48M 1.37-1.42 13.7-14.2 ≥1018 ≥12.8 ≥1114 ≥14 366-390 46-49 -0.12 -0.65 100
N45M 1.32-1.38 13.2-13.8 ≥987 ≥12.4 ≥1114 ≥14 334-366 42-46 -0.12 -0.65 100
N42M 1.29-1.32 12.9-13.2 ≥955 ≥12.0 ≥1114 ≥14 318-334 40-42 -0.12 -0.65 100
N40M 1.26-1.29 12.6-12.9 ≥939 ≥11.8 ≥1114 ≥14 303-318 38-40 -0.12 -0.65 100
N38M 1.22-1.26 12.2-12.6 ≥916 ≥11.5 ≥1114 ≥14 287-303 36-38 -0.12 -0.65 100
N35M 1.17-1.21 11.7-12.1 ≥876 ≥11.0 ≥1114 ≥14 263-279 33-35 -0.12 -0.65 100
N33M 1.14-1.17 11.4-11.7 ≥852 ≥10.7 ≥1114 ≥14 247-263 31-33 -0.12 -0.65 100
N30M 1.08-1.12 10.8-11.2 ≥812 ≥10.2 ≥1114 ≥14 223-239 28-30 -0.12 -0.65 100
N52H 1.42-1.45 14.2-14.5 ≥1035 ≥13.0 ≥1353 ≥16.5 398-422 50-53 -0.11 -0.58 120
N50H 1.39-1.42 13.9-14.2 ≥1035 ≥13.0 ≥1353 ≥17 374-398 47-50 -0.11 -0.58 120
N48H 1.36-1.42 13.6-14.2 ≥1026 ≥12.9 ≥1353 ≥17 358-374 45-49 -0.11 -0.58 120
N45H 1.32-1.38 13.2-13.8 ≥987 ≥12.4 ≥1353 ≥17 334-366 42-46 -0.11 -0.58 120
N42H 1.29-1.32 12.9-13.2 ≥955 ≥12.0 ≥1353 ≥17 318-334 40-42 -0.11 -0.58 120
N40H 1.26-1.29 12.6-12.9 ≥939 ≥11.8 ≥1353 ≥17 303-318 38-40 -0.11 -0.62 120
N38H 1.22-1.26 12.2-12.6 ≥916 ≥11.6 ≥1353 ≥17 287-303 36-38 -0.11 -0.62 120
N35H 1.17-1.21 11.7-12.1 ≥875 ≥11.0 ≥1353 ≥17 263-279 33-35 -0.11 -0.62 120
N33H 1.14-1.17 11.4-11.7 ≥851 ≥10.7 ≥1353 ≥17 247-263 31-33 -0.11 -0.62 120
N30H 1.08-1.12 10.8-11.2 ≥812 ≥10.2 ≥1353 ≥17 223-239 28-30 -0.11 -0.62 120
N50SH 1.39-1.42 13.9-14.2 ≥1035 ≥13.0 ≥1500 ≥19 398-415 47-50 -0.11 -0.6 150
N48SH 1.36-1.42 13.6-14.2 ≥1026 ≥12.9 ≥1592 ≥20 358-398 45-49 -0.11 -0.6 150
N45SH 1.32-1.36 13.2-13.6 ≥987 ≥12.4 ≥1592 ≥20 334-366 42-46 -0.11 -0.6 150
N42SH 1.29-1.32 12.9-13.2 ≥963 ≥12.1 ≥1592 ≥20 318-334 40-42 -0.11 -0.6 150
N40SH 1.26-1.29 12.6-12.9 ≥931 ≥11.7 ≥1592 ≥20 303-318 38-40 -0.11 -0.6 150
N38SH 1.22-1.26 12.2-12.6 ≥899 ≥11.3 ≥1592 ≥20 287-303 36-38 -0.11 -0.6 150
N35SH 1.17-1.21 11.7-12.1 ≥876 ≥11.0 ≥1592 ≥20 263-279 33-35 -0.11 -0.6 150
N33SH 1.14-1.17 11.4-11.7 ≥851 ≥10.7 ≥1592 ≥20 247-263 31-33 -0.11 -0.6 150
N30SH 1.08-1.12 10.8-11.2 ≥812 ≥10.2 ≥1592 ≥20 223-239 28-30 -0.11 -0.6 150
N45UH 1.32-1.36 13.2-13.6 ≥987 ≥12.4 ≥1990 ≥25 334-366 42-46 -0.1 -0.55 180
N42UH 1.29-1.32 12.9-13.2 ≥963 ≥12.1 ≥1990 ≥25 318-334 40-42 -0.1 -0.55 180
N40UH 1.26-1.32 12.6-13.2 ≥939 ≥11.8 ≥1990 ≥25 303-318 38-40 -0.1 -0.55 180
N38UH 1.22-1.26 12.2-12.6 ≥915 ≥11.5 ≥1990 ≥25 287-303 36-38 -0.1 -0.55 180
N35UH 1.17-1.21 11.7-12.1 ≥875 ≥11.0 ≥1990 ≥25 263-279 33-35 -0.1 -0.55 180
N33UH 1.14-1.17 11.4-11.7 ≥851 ≥10.7 ≥1990 ≥25 247-263 31-33 -0.1 -0.55 180
N30UH 1.08-1.12 10.8-11.2 ≥812 ≥10.2 ≥1990 ≥25 223-239 28-30 -0.1 -0.55 180
N38EH 1.22-1.29 12.2-12.9 ≥907 ≥11.4 ≥2388 ≥30 287-318 36-40 -0.09 -0.5 200
N35EH 1.18-1.25 11.8-12.5 ≥875 ≥11.0 ≥2388 ≥30 263-295 33-37 -0.09 -0.5 200
N33EH 1.14-1.17 11.4-11.7 ≥851 ≥10.7 ≥2388 ≥30 247-263 31-33 -0.09 -0.5 200
N30EH 1.08-1.12 10.8-11.2 ≥812 ≥10.2 ≥2388 ≥30 223-239 28-30 -0.09 -0.5 200
N32AH 1.12-1.20 10.8-12.0 ≥860 ≥10.8 ≥2626 ≥33 247-279 31-35 -0.09 -0.44 220



Monte Bianco has advanced manufacturing equipment, comprehensive testing equipment, a strong technical research team, meticulous organization, and strict control to provide customers with high-quality, reliable, and highly consistent products. The products produced are widely used in various fields such as electric tools, new energy vehicles, energy-saving motors, high-end audio systems, wind turbines, drones, etc.



Large Block Magnet NdFeb N42 Magnet Customized Size For Industrial 0



Tag:

Rare Earth Block Magnets

Neo Block Magnets

Neodymium Block Magnet

Want to Know more details about this product
I am interested in Large Block Magnet NdFeb N42 Magnet Customized Size For Industrial could you send me more details such as type, size, quantity, material, etc.
Thanks!
Waiting for your reply.
