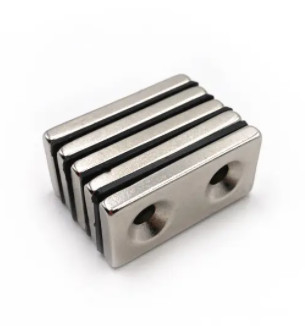

Square NdFeB Permanent Magnets Neodymium Magnets With Countersunk Holes
Product Details:
| Place of Origin: | China |
| Brand Name: | Monte Bianco |
| Certification: | ISO9001, ISO14001, TS16949 |
| Model Number: | N35-N52 (M.H.SH.UH.EH.AH) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500PCS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard Package,Negotiable |
| Delivery Time: | 15-30 working days after received your payment |
| Payment Terms: | T/T |
| Supply Ability: | 1000k pcs/month |
|
Detail Information |
|||
| Name: | Countersunk Hole Magnets | Grade: | N35-N52 (M.H.SH.UH.EH.AH) |
|---|---|---|---|
| Coating: | Zn, NiCuNi, Ni, Gold,Epoxy | Shape: | Customized According To Customer Requirements |
| Charge Mixture: | Pr、Nd、B、Fe、Dy、Tb、Al、Cu、Ga、Zr、Ho、Nb、La、Ce, Etc | Tolerance: | 0.05mm ~ 0.1mm |
| Lead Time: | 10-25 Days | Application: | Industrial Magnet |
| High Light: | Square NdFeB Permanent Magnets,Countersunk NdFeB Permanent Magnets,Neodymium Magnets With Countersunk Holes |
||
Product Description
NdFeB Magnets Permanent Square Countersunk Holes Magnets Block
Neodymium (NdFeB) permanent magnet is composed of neodymium, iron, boron and a few transition metals. It has many advantages like high coercive force, high energy, high performance/ cost ratio and can be easily formed into various shapes and widely used in many fields such as aviation, electronics, instruments, meters, DC motors, Liner motors, MRI, medical and health products.
There are many levels of NdFeB magnets
| grade | Max Operating Temperature | grade | Max Operating Temperature |
| N30-N54 | 80℃(176℉) | N30UH-N45UH | 180℃(356℉) |
| N30M-N52M | 100℃(212℉) | N30EH-N38EH | 200℃(392℉) |
| N30H-N52H | 120℃(248℉) | N32AH | 220℃(428℉) |
| N30SH-N45SH | 150℃(302℉) |
The sintered neodymium-iron-boron (NdFeB) permanent magnet is widely used in permanent magnet servo motor, permanent magnet elevator tractor, wind driven generator, permanent magnet linear motor, permanent magnet step motor, permanent magnet micromotor,permanent magnet oil field motor, permanent magnet transducer, permanent magnet loudspeaker, electronic component, medical equipment and so on.
