Custom Sintered NdFeB Magnets , Speaker Neodymium Magnets Arc
Product Details:
| Place of Origin: | China |
| Brand Name: | Monte Bianco |
| Certification: | ISO9001, ISO14001, TS16949 |
| Model Number: | N35-N52 (M.H.SH.UH.EH.AH) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500PCS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard Package |
| Delivery Time: | 15-30 working days after received your payment |
| Payment Terms: | T/T |
| Supply Ability: | 1000k pcs/month |
|
Detail Information |
|||
| Name: | Custom Sintered Ndfeb Neodymium Tile Arc Magnets For Motor Rotor Generator | Grade: | N35-N52 (M.H.SH.UH.EH.AH) |
|---|---|---|---|
| Coating: | Ni Cu Ni, Zn, Cr, Gold, Silver, Epoxy, Phosphating | Size: | Customized According To Customer Requirements |
| Application: | Industrial Magnet, Etc | Max Operating Temperature: | 80-220℃（176-428℉） |
| Processing: | Sintered Motor Magnet Permanent,Sintered | Packing: | Foam Board+carton Box Or Customized |
| High Light: | Custom Sintered NdFeB Magnets,Neodymium Speaker Magnet,Speaker Neodymium Magnets Arc |
||
Product Description

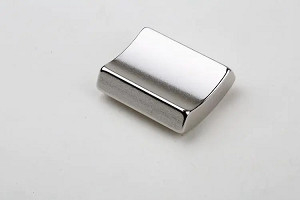

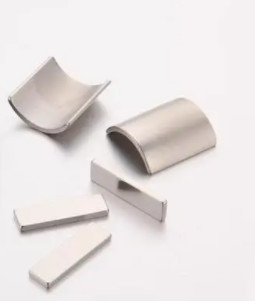

Custom Sintered Ndfeb Neodymium Tile Arc Magnets For Motor Rotor Generator
The sintered neodymium iron boron permanent magnet material adopts a powder metallurgy process. The melted alloy is made into powder and pressed into a pressing embryo in a magnetic field. The pressing embryo is sintered in an inert gas or vacuum to achieve densification. In order to improve the coercivity of the magnet, aging heat treatment is usually required.
Max Operating Temperature
| grade | Max Operating Temperature | grade | Max Operating Temperature |
| N30-N54 | 80℃(176℉) | N30UH-N45UH | 180℃(356℉) |
| N30M-N52M | 100℃(212℉) | N30EH-N38EH | 200℃(392℉) |
| N30H-N52H | 120℃(248℉) | N32AH | 220℃(428℉) |
| N30SH-N45SH | 150℃(302℉) |
Applications
1. Manufacturing magnetic resonance coils (or magnetic disks), such as magnetic disk drives;
2. Making various tape recorders;
3. Annular polaron for manufacturing optical fiber;
4. A tweeter used as a subminiature speaker;
5. Making magnetic drums in a tape recorder, etc;
