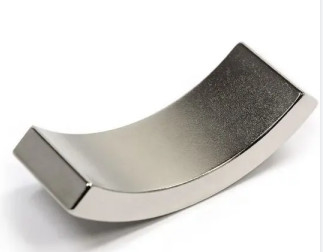

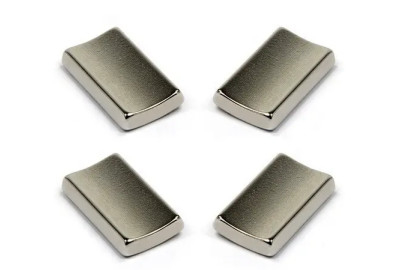

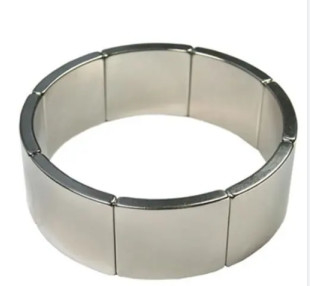

High Power Generator Neodymium Magnet Ni Cu Ni Coating Arc NdFeB Magnet
Product Details:
| Place of Origin: | China |
| Brand Name: | Monte Bianco |
| Certification: | ISO9001, ISO14001, TS16949 |
| Model Number: | N35-N52 (M.H.SH.UH.EH.AH) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard Package |
| Delivery Time: | 15-21 working days after received your payment |
| Payment Terms: | T/T |
| Supply Ability: | 1000k pcs/month |
|
Detail Information |
|||
| Name: | High Power Generator Neodymium Magnet Ni Cu Ni Coating Custom Arc NdFeB Magnet | Grade: | N35-N52 (M.H.SH.UH.EH.AH) |
|---|---|---|---|
| Coating: | Ni Cu Ni, Zn, Cr, Gold, Silver, Epoxy, Phosphating | Size: | Customized |
| Max Operating Temperature: | 80-220℃（176-428℉） | Application: | Industrial Magnet, Etc |
| Processing: | Sintered Motor Magnet Permanent,Sintered | Packing: | Foam Board+carton Box Or Customized |
| Brand Name: | Monte-Bianco/OEM | Place Of Origin: | Hunan,China |
| Highlight: | High Power Generator Neodymium Magnet,ISO14001 Generator Neodymium Magnet,High Power Neodymium Magnets |
||
Product Description
High Power Generator Neodymium Magnet Ni Cu Ni Coating Custom Arc NdFeB Magnet
Customized neodymium iron boron magnets require the following data
1. Custom sizes -- (please specify all sizes in millimeters or inches).
Arc magnet: outer diameter x inter diameter x width x thickness

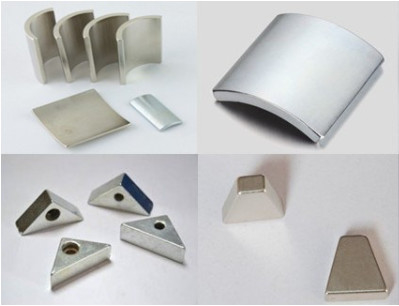

If you have special shape of the magnet,Please kindly provide sketches or drawing for us.
2. Grade Choose -- (The higher the performance level, the stronger the magnetic force)
| grade | Max Operating Temperature | grade | Max Operating Temperature |
| N30-N54 | 80℃(176℉) | N30UH-N45UH | 180℃(356℉) |
| N30M-N52M | 100℃(212℉) | N30EH-N38EH | 200℃(392℉) |
| N30H-N52H | 120℃(248℉) | N32AH | 220℃(428℉) |
| N30SH-N45SH | 150℃(302℉) |
3. Surface coatings
NiCuNi, Zn, Cr, Gold, Silver, Epoxy, Phosphating etc.
4. Quantity -- (samples available)
In order to provide an accurate competitive price, the number of magnets is essential.
5. Magnetic Direction
The direction of magnetization of the magnet is determined during the pressing process. which indicate that the finished product cannot be changed. Be sure to confirm the desired direction of magnetization.
Monte-Bianco Magnets Co., Ltd. is located in Changsha, Hunan Province. With more than 1000 skilled employees, our company has an annual production capacity of 2000 tons. Our company is able to supply a full range of products. It has been equipped with entire production capacity of product development, mold development and manufacturing, block production, finished product processing, surface treatment and other processes under fully controlled and managed process. Our products are widely used in power tools, new energy vehicles, energy-saving motors, wind power generation, high-end audio and other fields.
