OEM Generator Neodymium Magnet Wind Turbine Size Customized
Product Details:
| Place of Origin: | China |
| Brand Name: | Monte Bianco |
| Certification: | ISO9001, ISO14001, TS16949 |
| Model Number: | N35-N52 (M.H.SH.UH.EH.AH) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500PCS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard Package |
| Delivery Time: | 15-30 working days after received your payment |
| Payment Terms: | T/T |
| Supply Ability: | 1000k pcs/month |
|
Detail Information |
|||
| Product Name: | Neodymium Wind Turbine Magnets | Grade: | N35-N52 (M.H.SH.UH.EH.AH) |
|---|---|---|---|
| Coating: | Ni Cu Ni, Zn, Cr, Gold, Silver, Epoxy, Phosphating | Size: | Customized |
| Application: | Industrial Magnet, Etc | Max Operating Temperature: | 80-220℃（176-428℉） |
| Charge Mixture: | Pr、Nd、B、Fe、Dy、Tb、Al、Cu、Ga、Zr、Ho、Nb、La、Ce, Etc | Packing: | Foam Board+carton Box Or Customized |
| High Light: | OEM Generator Neodymium Magnet,Generator Neodymium Magnet Wind Turbine,Neodymium Wind Turbine Magnets |
||
Product Description

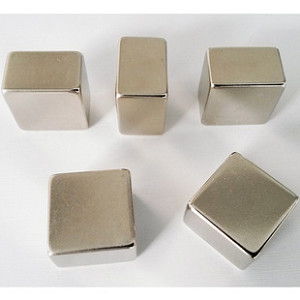

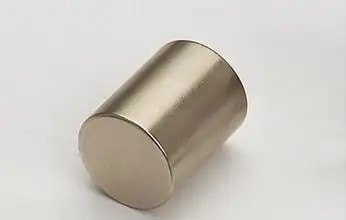

Generator Neodymium Magnet Wind Turbine Generator Magnets
Typical magnetic properties of sintered neodymium iron boron for permanent magnet wind turbines
Neodymium permanent magnets are known as the third generation rare earth permanent magnets and have the highest magnetic properties to date. The main phase of sintered neodymium iron boron alloy is the intermetallic compound Nd2Fe14B, with a saturation magnetic polarization strength (Js) of 1.6T<1>. Due to the fact that the sintered neodymium iron boron permanent magnet alloy consists of the main phase Nd2Fe14B and grain boundary phases, and the grain orientation of Nd2Fe14B is limited by process conditions, the maximum residual magnetism of the magnet can currently reach 1.5T.
When designing permanent magnet motors, advanced NdFeB is usually chosen to achieve high air gap magnetic density. When the electric motor is running, neodymium magnets with high coercivity are required due to the alternating demagnetization field and the instantaneous high current demagnetization effect when the load suddenly changes.
Max Operating Temperature
| grade | Max Operating Temperature | grade | Max Operating Temperature |
| N30-N54 | 80℃(176℉) | N30UH-N45UH | 180℃(356℉) |
| N30M-N52M | 100℃(212℉) | N30EH-N38EH | 200℃(392℉) |
| N30H-N52H | 120℃(248℉) | N32AH | 220℃(428℉) |
| N30SH-N45SH | 150℃(302℉) |
