Nickel Coating Neo Neodymium Magnets For Electric Motors

Nickel Coating Neo Neodymium Magnets For Electric Motors

Product Details:

Place of Origin: China
Brand Name: Monte Bianco
Certification: ISO9001, ISO14001, TS16949
Model Number: N35-N52 (M.H.SH.UH.EH.AH)

Payment & Shipping Terms:

Minimum Order Quantity: 500PCS
Price: Negotiation
Packaging Details: Standard Package
Delivery Time: 15-30 working days after received your payment
Payment Terms: T/T
Supply Ability: 1000k pcs/month
Get Best Price Contact Now

Detail Information
Name: Neodymium Magnet Nickel Coating Grade: N35-N52 (M.H.SH.UH.EH.AH)
Coating: Ni Cu Ni, Zn, Cr, Gold, Silver, Epoxy, Phosphating Application: Industrial Magnet, Etc
Max Operating Temperature: 80-220℃（176-428℉） Size: Customized According To Customer Requirements
Processing: Sintered Motor Magnet Permanent,Sintered Packing: Foam Board+carton Box Or Customized
High Light:

Neo Neodymium Magnets

,

Neodymium Magnets For Electric Motors

,

Neodymium Magnet Nickel Coating

Product Description

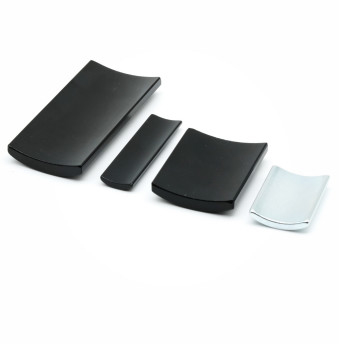

Strong Magnet Customized Neodymium Magnets Arc for rotor motor​



Introduction of Manufacturing Process


Sintered Neodymium magnet is prepared by the raw materials being melted under vacuum or inert gas atmosphere in an induction melting furnace and processed in the strip caster and thus cooled to form alloy strip. The strips are crushed and pulverized to form a fine powder ranging from 3 to 7 microns in particle size. The powder is subsequently compacted in an aligning field and sintered into dense bodies. The blanks are then machined to the specific shapes, surface treated and magnetized.



Please see the following our neo magnet grade

grade Br Hcb Hcj (BH)max temperature coefficient Max working temperature
α Br β Hcj
T kGs kA/m kOe kA/m kOe kJ/m3 MGOe %/℃ %/℃ ℃
N54 1.45-1.48 14.5-14.8 ≥836 ≥10.5 ≥876 ≥11 415-461 52-58 -0.12 -0.65 80
N52 1.42-1.45 14.2-14.8 ≥836 ≥10.5 ≥876 ≥11 398-415 50-52 -0.12 -0.65 80
N50 1.40-1.42 14.0-14.5 ≥836 ≥10.5 ≥955 ≥12 374-398 47-50 -0.12 -0.65 80
N48 1.37-1.40 13.7-14.2 ≥836 ≥10.5 ≥955 ≥12 358-374 45-48 -0.12 -0.65 80
N45 1.32-1.37 13.2-13.7 ≥836 ≥10.5 ≥955 ≥12 342-358 43-45 -0.12 -0.65 80
N42 1.29-1.32 12.9-13.2 ≥836 ≥10.5 ≥955 ≥12 318-334 40-42 -0.12 -0.65 80
N40 1.26-1.29 12.6-12.9 ≥836 ≥10.5 ≥955 ≥12 303-318 38-40 -0.12 -0.65 80
N38 1.22-1.26 12.2-12.6 ≥859 ≥10.8 ≥955 ≥12 287-303 36-38 -0.12 -0.65 80
N35 1.17-1.21 11.7-12.1 ≥859 ≥10.8 ≥955 ≥12 263-279 33-35 -0.12 -0.65 80
N33 1.14-1.17 11.4-11.7 ≥836 ≥10.5 ≥955 ≥12 247-263 31-33 -0.12 -0.65 80
N30 1.08-1.12 10.8-11.2 ≥796 ≥10.0 ≥955 ≥12 223-239 28-30 -0.12 -0.65 80
N52M 1.42-1.45 14.2-14.5 ≥995 12.5 ≥1114 ≥14 389-422 49-53 -0.12 -0.65 100
N50M 1.39-1.45 13.9-14.5 ≥1050 ≥13.2 ≥1114 ≥14 374-406 47-51 -0.12 -0.65 100
N48M 1.37-1.42 13.7-14.2 ≥1018 ≥12.8 ≥1114 ≥14 366-390 46-49 -0.12 -0.65 100
N45M 1.32-1.38 13.2-13.8 ≥987 ≥12.4 ≥1114 ≥14 334-366 42-46 -0.12 -0.65 100
N42M 1.29-1.32 12.9-13.2 ≥955 ≥12.0 ≥1114 ≥14 318-334 40-42 -0.12 -0.65 100
N40M 1.26-1.29 12.6-12.9 ≥939 ≥11.8 ≥1114 ≥14 303-318 38-40 -0.12 -0.65 100
N38M 1.22-1.26 12.2-12.6 ≥916 ≥11.5 ≥1114 ≥14 287-303 36-38 -0.12 -0.65 100
N35M 1.17-1.21 11.7-12.1 ≥876 ≥11.0 ≥1114 ≥14 263-279 33-35 -0.12 -0.65 100
N33M 1.14-1.17 11.4-11.7 ≥852 ≥10.7 ≥1114 ≥14 247-263 31-33 -0.12 -0.65 100
N30M 1.08-1.12 10.8-11.2 ≥812 ≥10.2 ≥1114 ≥14 223-239 28-30 -0.12 -0.65 100
N52H 1.42-1.45 14.2-14.5 ≥1035 ≥13.0 ≥1353 ≥16.5 398-422 50-53 -0.11 -0.58 120
N50H 1.39-1.42 13.9-14.2 ≥1035 ≥13.0 ≥1353 ≥17 374-398 47-50 -0.11 -0.58 120
N48H 1.36-1.42 13.6-14.2 ≥1026 ≥12.9 ≥1353 ≥17 358-374 45-49 -0.11 -0.58 120
N45H 1.32-1.38 13.2-13.8 ≥987 ≥12.4 ≥1353 ≥17 334-366 42-46 -0.11 -0.58 120
N42H 1.29-1.32 12.9-13.2 ≥955 ≥12.0 ≥1353 ≥17 318-334 40-42 -0.11 -0.58 120
N40H 1.26-1.29 12.6-12.9 ≥939 ≥11.8 ≥1353 ≥17 303-318 38-40 -0.11 -0.62 120
N38H 1.22-1.26 12.2-12.6 ≥916 ≥11.6 ≥1353 ≥17 287-303 36-38 -0.11 -0.62 120
N35H 1.17-1.21 11.7-12.1 ≥875 ≥11.0 ≥1353 ≥17 263-279 33-35 -0.11 -0.62 120
N33H 1.14-1.17 11.4-11.7 ≥851 ≥10.7 ≥1353 ≥17 247-263 31-33 -0.11 -0.62 120
N30H 1.08-1.12 10.8-11.2 ≥812 ≥10.2 ≥1353 ≥17 223-239 28-30 -0.11 -0.62 120
N50SH 1.39-1.42 13.9-14.2 ≥1035 ≥13.0 ≥1500 ≥19 398-415 47-50 -0.11 -0.6 150
N48SH 1.36-1.42 13.6-14.2 ≥1026 ≥12.9 ≥1592 ≥20 358-398 45-49 -0.11 -0.6 150
N45SH 1.32-1.36 13.2-13.6 ≥987 ≥12.4 ≥1592 ≥20 334-366 42-46 -0.11 -0.6 150
N42SH 1.29-1.32 12.9-13.2 ≥963 ≥12.1 ≥1592 ≥20 318-334 40-42 -0.11 -0.6 150
N40SH 1.26-1.29 12.6-12.9 ≥931 ≥11.7 ≥1592 ≥20 303-318 38-40 -0.11 -0.6 150
N38SH 1.22-1.26 12.2-12.6 ≥899 ≥11.3 ≥1592 ≥20 287-303 36-38 -0.11 -0.6 150
N35SH 1.17-1.21 11.7-12.1 ≥876 ≥11.0 ≥1592 ≥20 263-279 33-35 -0.11 -0.6 150
N33SH 1.14-1.17 11.4-11.7 ≥851 ≥10.7 ≥1592 ≥20 247-263 31-33 -0.11 -0.6 150
N30SH 1.08-1.12 10.8-11.2 ≥812 ≥10.2 ≥1592 ≥20 223-239 28-30 -0.11 -0.6 150
N45UH 1.32-1.36 13.2-13.6 ≥987 ≥12.4 ≥1990 ≥25 334-366 42-46 -0.1 -0.55 180
N42UH 1.29-1.32 12.9-13.2 ≥963 ≥12.1 ≥1990 ≥25 318-334 40-42 -0.1 -0.55 180
N40UH 1.26-1.32 12.6-13.2 ≥939 ≥11.8 ≥1990 ≥25 303-318 38-40 -0.1 -0.55 180
N38UH 1.22-1.26 12.2-12.6 ≥915 ≥11.5 ≥1990 ≥25 287-303 36-38 -0.1 -0.55 180
N35UH 1.17-1.21 11.7-12.1 ≥875 ≥11.0 ≥1990 ≥25 263-279 33-35 -0.1 -0.55 180
N33UH 1.14-1.17 11.4-11.7 ≥851 ≥10.7 ≥1990 ≥25 247-263 31-33 -0.1 -0.55 180
N30UH 1.08-1.12 10.8-11.2 ≥812 ≥10.2 ≥1990 ≥25 223-239 28-30 -0.1 -0.55 180
N38EH 1.22-1.29 12.2-12.9 ≥907 ≥11.4 ≥2388 ≥30 287-318 36-40 -0.09 -0.5 200
N35EH 1.18-1.25 11.8-12.5 ≥875 ≥11.0 ≥2388 ≥30 263-295 33-37 -0.09 -0.5 200
N33EH 1.14-1.17 11.4-11.7 ≥851 ≥10.7 ≥2388 ≥30 247-263 31-33 -0.09 -0.5 200
N30EH 1.08-1.12 10.8-11.2 ≥812 ≥10.2 ≥2388 ≥30 223-239 28-30 -0.09 -0.5 200
N32AH 1.12-1.20 10.8-12.0 ≥860 ≥10.8 ≥2626 ≥33 247-279 31-35 -0.09 -0.44 220



Protecting neodymium magnets is important because they quickly oxidize without a protective coating.



1, Nickel coating



Nickel plated magnets and the most common coating on most magnets in the market. This coating is typically used as a three-layer coating with copper in the middle (nickel copper nickel). As long as it is moisture-proof, it is very suitable for indoor/outdoor use.



Nickel coating can also be used as black nickel, with a shiny dark gray/charcoal color.



2, Chemical nickel coating



Chemical nickel plating is similar to regular nickel plating, except that it is almost completely resistant to alkali, salt/brine solutions, chemical and petroleum environments, as well as all types of hydrocarbons, solvents, ammonia solutions, and acids. This makes electroless nickel plating an excellent choice for magnets that require corrosion resistance.



3, Galvanized coating



Zinc is commonly used as a single layer coating. It has excellent performance as a corrosion-resistant coating and is also very affordable. As zinc begins to oxidize, it forms a layer of zinc oxide, which helps protect the magnet.



4, Epoxy resin coating



The epoxy resin coating is mostly black, covering three layers of nickel coating (Ni Cu Ni Epoxy). It provides excellent performance in outdoor applications that require corrosion resistance. This coating is softer than other coatings and is prone to scratches, which can expose the underlying layer and cause corrosion of the magnet. There are multiple colors to choose from for epoxy resin coatings.



Nickel Coating Neo Neodymium Magnets For Electric Motors 0
