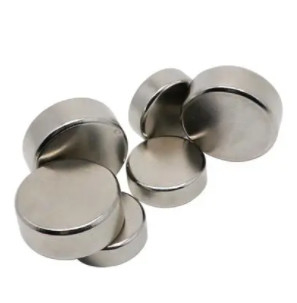

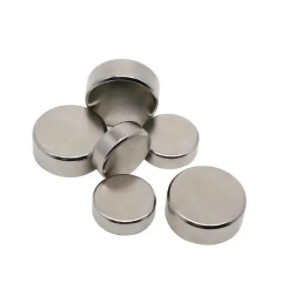

Industrial NdFeB Permanent Magnets Super Strong Neodymium Disc Magnets
Product Details:
| Place of Origin: | China |
| Brand Name: | Monte Bianco |
| Certification: | ISO9001, ISO14001, TS16949 |
| Model Number: | N35-N52 (M.H.SH.UH.EH.AH) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 piece |
|---|---|
| Price: | Negotiatial |
| Packaging Details: | Standard Package |
| Delivery Time: | 15-30 working days after received your payment |
| Payment Terms: | T/T |
| Supply Ability: | 500k pcs/month |
|
Detail Information |
|||
| Name: | Super Strong Neodymium Disc Magnets | Grade: | N35-N52 (M.H.SH.UH.EH.AH) |
|---|---|---|---|
| Surface Coating: | Ni, Zn, Cr, Gold, Silver, Epoxy, Phosphating | Size: | Customized Magnet Size |
| Tolerance: | 0.05mm ~ 0.1mm | Composite: | NdFeB Magnet,Neodymium Magnet,Rare Earth Magnet,Ferrite Magnet,Rare Earth Nd-Fe-B |
| Magnetism Direction: | Axial/Radial,Axially Magnetized | Processing: | Sintered Motor Magnet Permanent,Sintered |
| Highlight: | Industrial NdFeB Permanent Magnets,ISO14001 NdFeB Permanent Magnets,Super Strong Neodymium Disc Magnets |
||
Product Description
Strong Permanent NdFeb Neodymium Magnetic Materials Disc Magnet N35-N52
Strong magnets refer to strong magnets, with professional names such as rare earth strong magnets and neodymium magnets. These types of magnets usually have very high characteristics and are widely used in children's toys, packaging boxes, lighting fixtures, craft gifts, speakers, medical equipment, health products, electronic equipment, and five metal building materials. Usually, N33, N35, and N38 are the most suitable, and these three are the most common performance indicators of neodymium iron boron permanent magnets, If the requirements of the regulations are not too high, these types of characteristic magnets will be similar.
There are many levels of NdFeB magnets
| grade | Max Operating Temperature | grade | Max Operating Temperature |
| N30-N54 | 80℃(176℉) | N30UH-N45UH | 180℃(356℉) |
| N30M-N52M | 100℃(212℉) | N30EH-N38EH | 200℃(392℉) |
| N30H-N52H | 120℃(248℉) | N32AH | 220℃(428℉) |
| N30SH-N45SH | 150℃(302℉) |
FAQ
Q: May we get a sample of the product?
A: Yes,the samples testing should be necessary for first time , we would like cooperate for samples. If it's regular magnets and we have stock , we would like supply free samples for customers, if need new production.
Q:Can you supply custom magnets?
A: Yes, we have the capability to produce magnets to your specification in NdFeB.You can contact us for more details .
Q:Do you have a minimum purchase order?
A: The manufacturing of magnets is a complex process, please check our production flow for more information. As considering the production time and cost, we suggest the batch order value should be more than US$3000 per time; Of course, if less than US$3000,we also would like quote our offer for your kind consideration, so we have no strict MOQ .
Q: How many days does it take to ship my order?
A: In generally, the sintering NdFeB magnet production time is 15-25days, the exact time need to be checked before the order .
Q:What elements affect the magnet price ?
A: 1. Shape and size : cylinder (DxH), cuboids(LxWxH) ,cubes, ring(ODxIDxH) belong to regular shape , arc magnets are popular used in motors or generators , before quotation and batch production , we have to confirm the technical drawing and samples, other irregular shape magnets are also can be made according to request.
2. Grade (Magnetic Property)
3. Plating(Coating)
4. Magnetizing Orientation
5. Quantity.
