China Factory Custom Super Strong Neodymium Arc Ndfeb Generator Magnet For Sale
Product Details:
| Place of Origin: | China |
| Brand Name: | Monte Bianco |
| Certification: | ISO9001, ISO14001, TS16949 |
| Model Number: | N35-N52 (M.H.SH.UH.EH.AH) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard Package |
| Delivery Time: | 15-21 working days after received your payment |
| Payment Terms: | T/T |
| Supply Ability: | 1000k pcs/month |
|
Detail Information |
|||
| Application: | Motors, Sensors, Speakers, Wind Turbines, Etc. | Coating: | Nickel, Zinc, Epoxy, Gold, Silver, Etc. |
|---|---|---|---|
| MOQ: | 100 Pieces | Magnetic Properties: | High Coercivity, High Energy Product And High Remanence |
| Material: | NdFeB | Max. Operating Temperature: | 200℃ |
| Payment Term: | T/T | Service: | OEM |
| Size: | Customized | Tolerance: | ±0.05mm |
Product Description

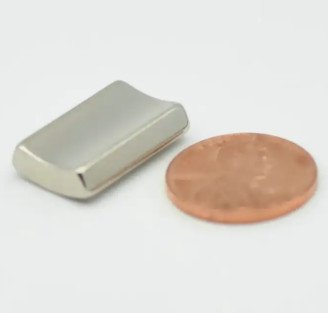

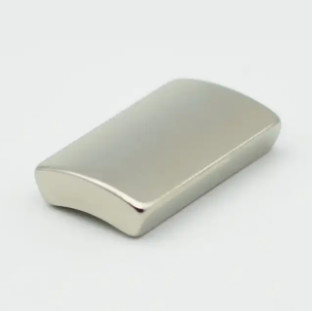

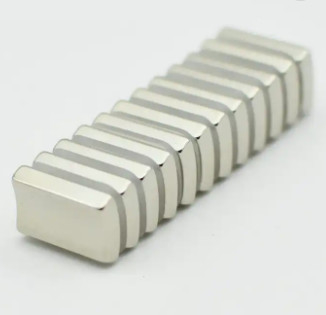

Arc Ndfeb magnets/tile Ndfeb magnets are commonly used on the rotors and stators of motors and generators, and where magnets are required to form around cylinders. Common surface finishes are nickel/zinc plated and black epoxy coating.
| Magnet Dimension | Custom dimension is available | |
| Magnetized Direction | Please indicate magnetization direction when ordering | |
| Magnet Grade | We can supply all grades of Ndfeb magnets | |
| For example:N35,N42,N52, N45sh,N42uh... | ||
| If you are not sure which grade is appropriate, please feel free to contact our engineers. | ||
| Temperature Resistance | Temperature is the first factor you must consider when choosing magnets, please contact our engineers for details. | |
| Coating | Customised (Zn, Ni-Cu-Ni, Ni, Gold, Silver, Copper, Epoxy, Chrome, etc) | |
| Max. Working Temperature | Grade | Max. Operating Temperatures |
| N35-N52 | 80°C (176°F) | |
| 33M- 48M | 100°C (212°F) | |
| 33H-48H | 120°C (248°F) | |
| 30SH-45SH | 150°C (302°F) | |
| 30UH-40UH | 180°C (356°F) | |
| 28EH-38EH | 200°C (392°F) | |
| 28AH-35AH | 220°C (428°F) | |
| Notice | 1. Be careful of fragile and clamped hands. | |
| 2. Store in a dry place at room temperature! | ||
| 3. Pull out carefully. When connecting the two magnets, slowly and gently close each other. Hard rolling can cause damage and cracking of magnets. | ||
| 4. Children are not allowed to play with naked Ndfeb magnets. | ||
Temperature resistance - Magnet Grade N42, maximum operating temperature is 80°C/176°F.
Temperature is the first factor you must consider when choosing a magnet, to ensure you choose the suitable magnet, please contact our engineers for details.
Premium Coating - This Ndfeb magnet is protected by a corrosion-resistant nickel-chromium alloy coating, creating a high-quality silver appearance that won't rust or scratch.
Nickel-cobalt coating is one of the most popular surface treatments for Ndfeb magnets. We can provide other coatings. Such as nickel copper
nickel, epoxy resin, zinc, gold, and so on.
1. Custom sizes -- (please specify all sizes in millimeters or inches).
*Arc magnet: outer diameter x inter diameter x width x thickness
*If you have special shape of the magnet,Please kindly provide sketches or drawing for us
2. Grade Choose -- (The higher the performance level, the stronger the magnetic force)
*N35, N38, N40, N42, N45, N48, N50, N52 (70-80°C)
*N35M, N38M, N40M, N42M, N45M, N48M, N50M (100-120°C)
*N30sSH, N33SH, N35SH, N35uh, N28eh, N30AH (150-230°C)
3. Surface coatings -- (Zinc and nickel-copper-nickel coatings are the most popular).
*There are many plating options such as nickel-copper-nickel, nickel, purple, gold, black epoxy etc
4. Quantity
*In order to provide an accurate competitive price, the number of magnets is essential.
Monte-Bianco Magnets Co., Ltd. is located in Changsha, Hunan Province. With more than 1000 skilled employees, our company has an annual production capacity of 2000 tons. Our company is able to supply a full range of products. It has been equipped with entire production capacity of product development, mold development and manufacturing, block production, finished product processing, surface treatment and other processes under fully controlled and managed process. Our products are widely used in power tools, new energy vehicles, energy-saving motors, wind power generation, high-end audio and other fields.
