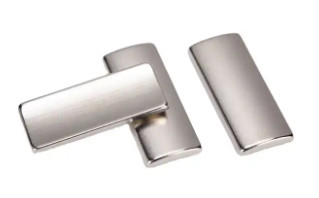

Permanent Generator Neodymium Magnet Arc Shape High Performance
Product Details:
| Place of Origin: | China |
| Brand Name: | Monte Bianco |
| Certification: | ISO9001, ISO14001, TS16949 |
| Model Number: | N35-N52 (M.H.SH.UH.EH.AH) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500PCS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard Package |
| Delivery Time: | 15-30 working days after received your payment |
| Payment Terms: | T/T |
| Supply Ability: | 1000k pcs/month |
|
Detail Information |
|||
| Name: | Permanent Generator Neodymium Magnet | Grade: | N35-N52 (M.H.SH.UH.EH.AH) |
|---|---|---|---|
| Coating: | Ni Cu Ni, Zn, Cr, Gold, Silver, Epoxy, Phosphating | Max Operating Temperature: | 80-220℃（176-428℉） |
| Tolerance: | International Standard | Packing: | Foam Board+carton Box Or Customized |
| Type: | Permanent, Round Block, Ring, NdFeB Magnet | Composite: | Neodymium Magnet, NdFeB Magnet, Rubber Magnet, Rare Earth Magnet, Neodymium-Iron-Boron |
| Brand Name: | Monte-Bianco | Place Of Origin: | Hunan,China |
| Highlight: | Permanent Generator Neodymium Magnet,Generator Neodymium Magnet Arc Shape,Permanent Generator Magnet Neodymium |
||
Product Description

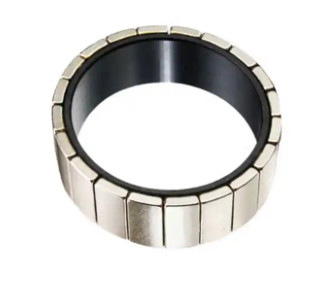

Neodymium Permanent Magnet Generators With Arc Shape Accept Customized Size
When designing permanent magnet motors, advanced NdFeB is usually chosen to achieve high air gap magnetic density. When the electric motor is running, neodymium magnets with high coercivity are required due to the alternating demagnetization field and the instantaneous high current demagnetization effect when the load suddenly changes.
| grade | Max Operating Temperature | grade | Max Operating Temperature |
| N30-N54 | 80℃(176℉) | N30UH-N45UH | 180℃(356℉) |
| N30M-N52M | 100℃(212℉) | N30EH-N38EH | 200℃(392℉) |
| N30H-N52H | 120℃(248℉) | N32AH | 220℃(428℉) |
| N30SH-N45SH | 150℃(302℉) |
NdFeB magnet is the most powerful and advanced permanent magnet today. It has high performance, high coercive force, high energy.It is easily formed into various shape and sizes, and belong to one of the most widely used magnetic materials. Especially suitable for development of high-performance, compact and light products.
Neodymium magnets are made of Neodymium, Iron and Boron. If left to the elements, the iron in magnet will rust.To protect the magnet from corrosion and to strengthen the brittle magnet material, it is usually preferable for themagnet to be coated.
Support all magnet plating , like Ni-Cu-Ni, Zn, Epoxy , Gold, Silver etc.
