Arc NdFeB High Power Permanent Magnets Neodymium Magnets In Wind Turbines
Product Details:
| Place of Origin: | China |
| Brand Name: | Monte Bianco |
| Certification: | ISO9001, ISO14001, TS16949 |
| Model Number: | N35-N52 (M.H.SH.UH.EH.AH) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 piece |
|---|---|
| Price: | Negotiatial |
| Packaging Details: | Standard Package |
| Delivery Time: | 15-30 working days after received your payment |
| Payment Terms: | T/T |
| Supply Ability: | 500k pcs/month |
|
Detail Information |
|||
| Product Name: | High Power Permanent Magnets | Grade: | N35-N52 (M.H.SH.UH.EH.AH) |
|---|---|---|---|
| Coating: | Ni, Zn, Cr, Gold, Silver, Epoxy, Phosphating | Size: | Customized Magnet Size |
| Material: | Permanent Neodymium Magnet | Application: | Industrial Magnet |
| Processing: | Sintered Motor Magnet Permanent,Sintered | Packing: | Foam Board+carton Box Or Customized |
| High Light: | NdFeB High Power Permanent Magnets,Permanent Magnets Neodymium Magnets,Neodymium Magnets In Wind Turbines |
||
Product Description

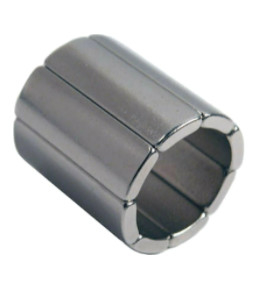

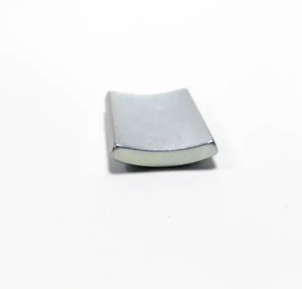

Arc NdFeB Magnet For Generators Wind Turbine Neodymium Permanent Magnets
Wind turbines can work in the wilderness and withstand the tests of high temperature and cold. At the same time, motor loss also leads to an increase in motor temperature. Sintered neodymium iron boron magnets can operate at 120 ° C.
The Curie temperature of neodymium iron boron permanent magnet alloy is about 310 ℃. When the temperature of the magnet exceeds the Curie point, it will change from ferromagnetism to paramagnetism. At the Curie temperature, the remanence of neodymium iron boron decreases with increasing temperature, and its remanence temperature coefficient (Br) is -0.095-0.105%/. The coercive force of Nd-Fe-B decreases with increasing temperature, and the temperature coefficient of coercive force β (jHc) is -0.54-0.64%. If an appropriate coercive force is selected, the magnet will still have a sufficiently high coercive force at the highest operating temperature designed for the motor; Otherwise, it will lose motivation.
Max Operating Temperature
| grade | Max Operating Temperature | grade | Max Operating Temperature |
| N30-N54 | 80℃(176℉) | N30UH-N45UH | 180℃(356℉) |
| N30M-N52M | 100℃(212℉) | N30EH-N38EH | 200℃(392℉) |
| N30H-N52H | 120℃(248℉) | N32AH | 220℃(428℉) |
| N30SH-N45SH | 150℃(302℉) |
